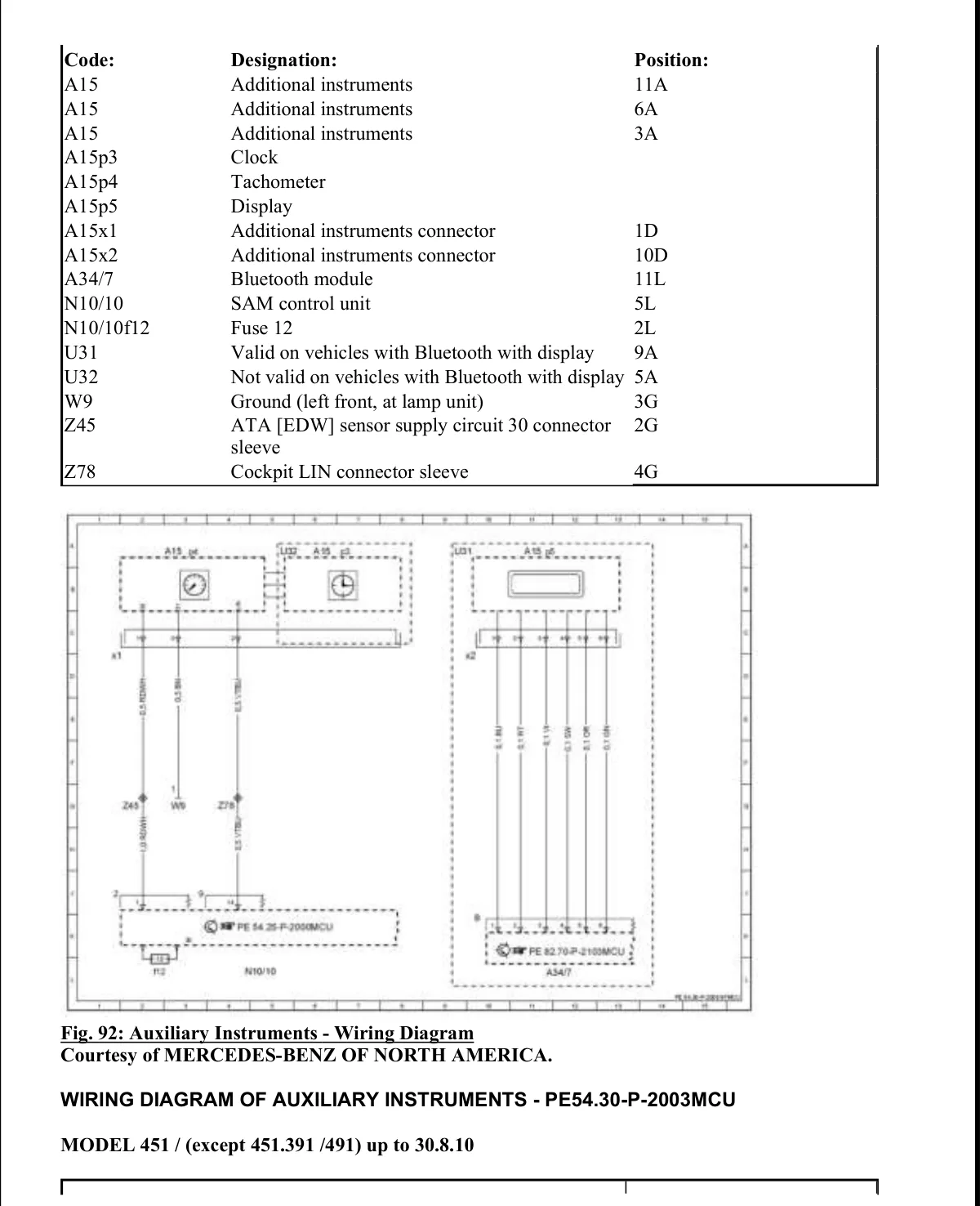

Auxiliary instruments wiring diagram for 451 chassis, showing clock, tachometer, display, connectors, and SAM control unit locations.

Wiring schematic of auxiliary dashboard instruments for Smart Fortwo 451 model with component positions and connector details.
