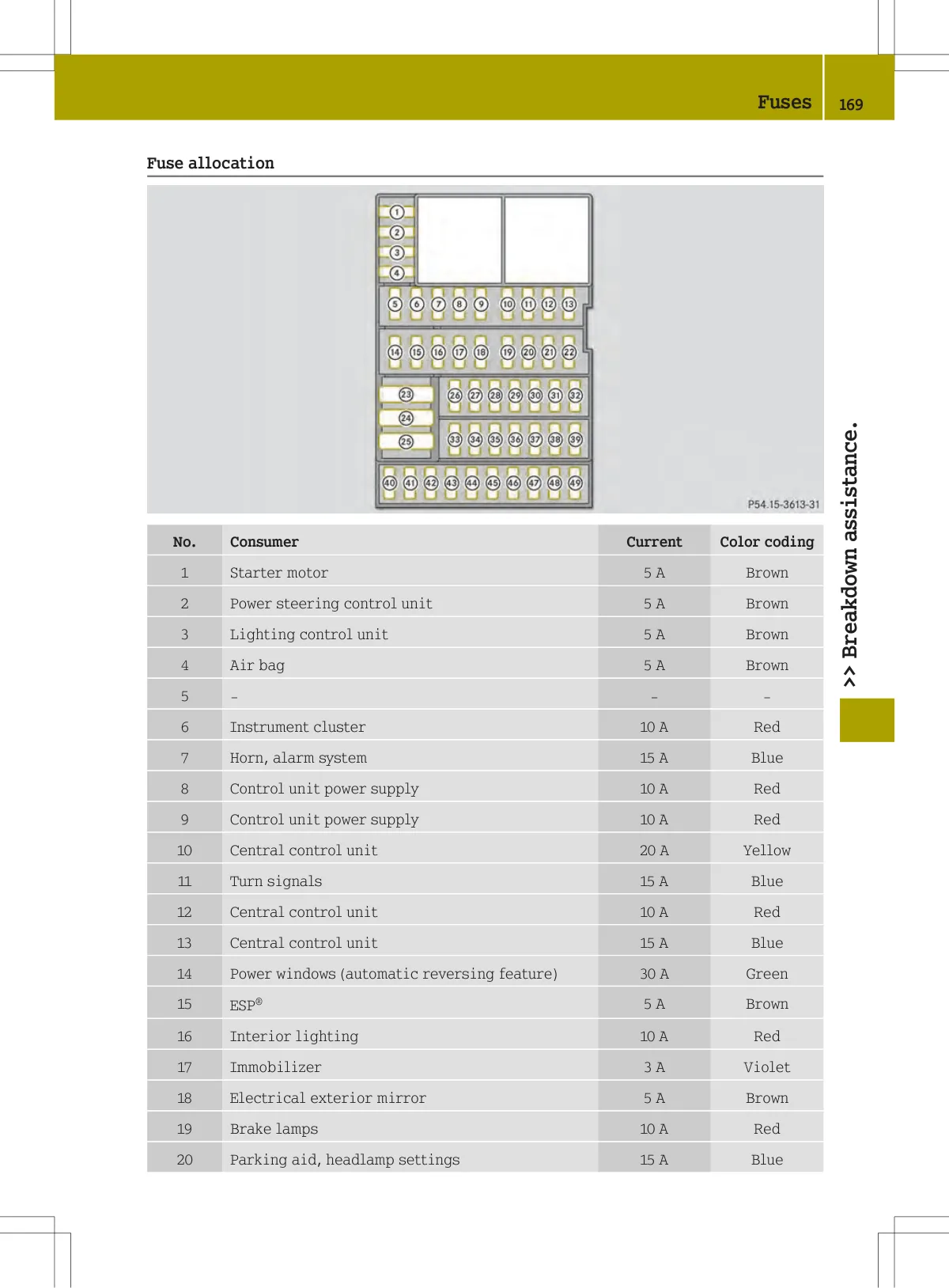

Fuse allocation diagram and reference table showing numbered fuse positions with current ratings and color coding for Smart 453.

Fuse box layout diagram with 49 numbered fuse positions and table listing fuse assignments 1-20 with amperage and colors.
