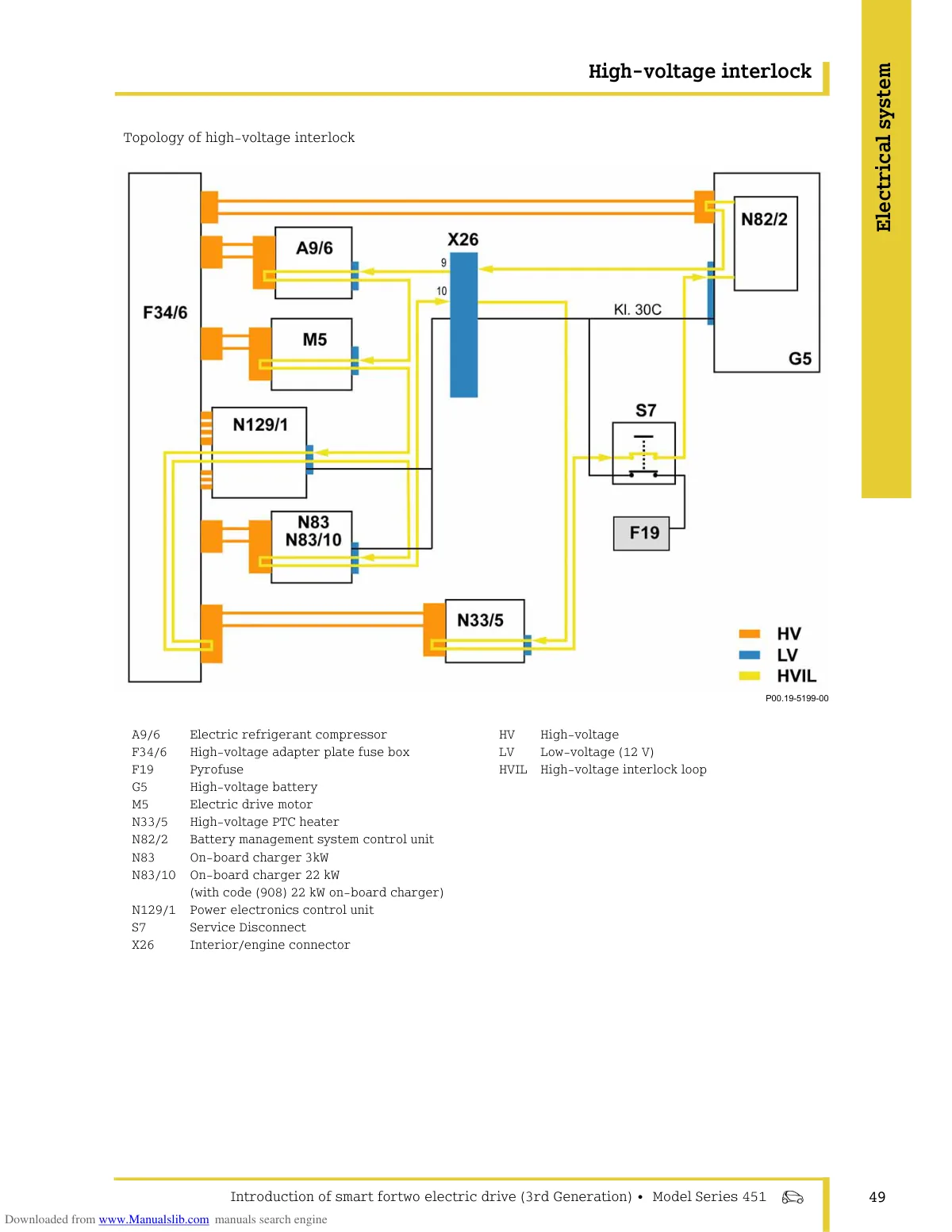

High-voltage interlock topology diagram showing electrical connections between battery, charger, motor, and safety components on Smart Fortwo 451.

Wiring diagram of high-voltage interlock system with colored lines indicating HV, LV, and HVIL circuits.
