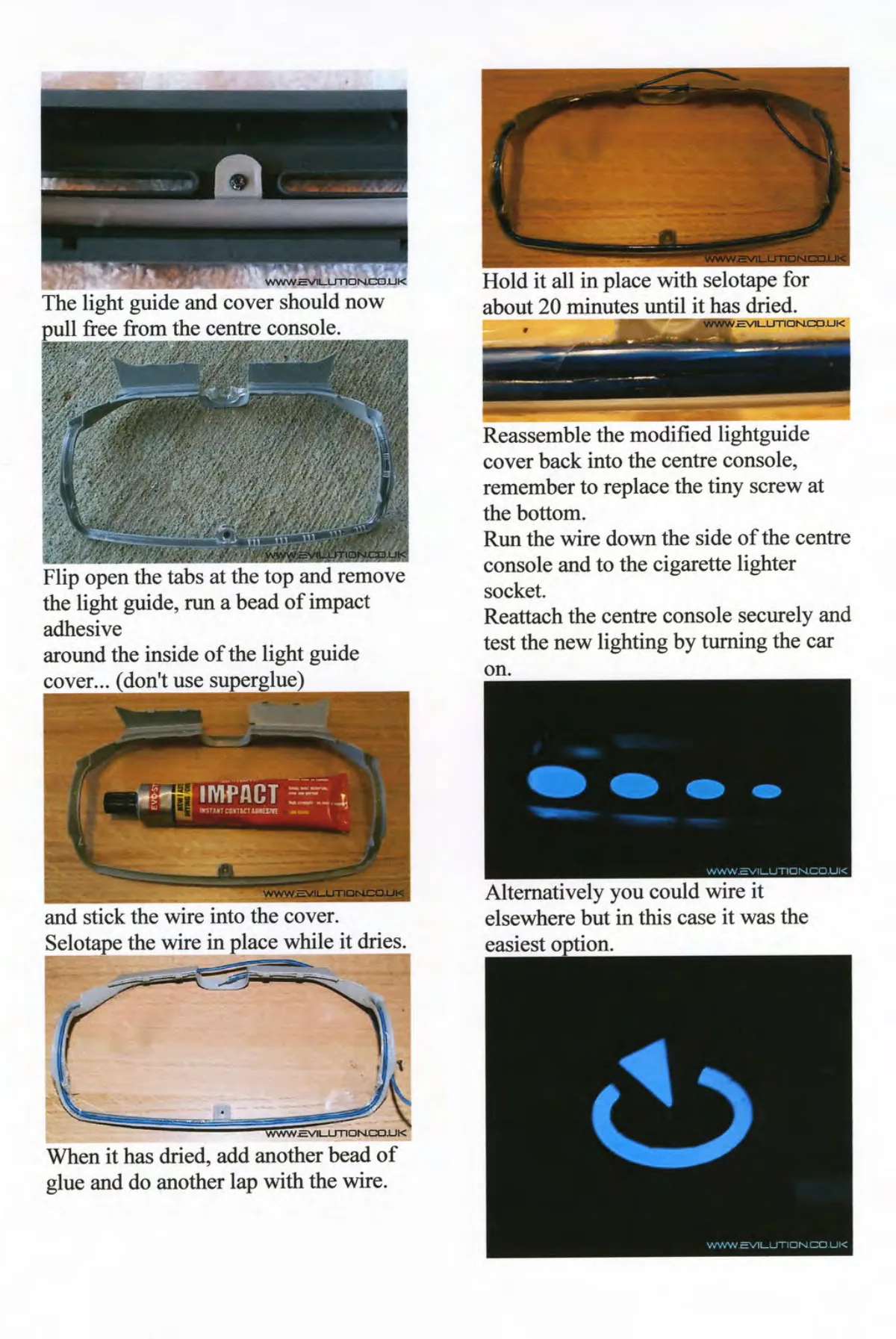

Step-by-step procedure for replacing light guide cover and installing LED lighting in Smart ForTwo center console.

Installation guide showing light guide removal, adhesive application, wire routing, and blue LED lighting results.
