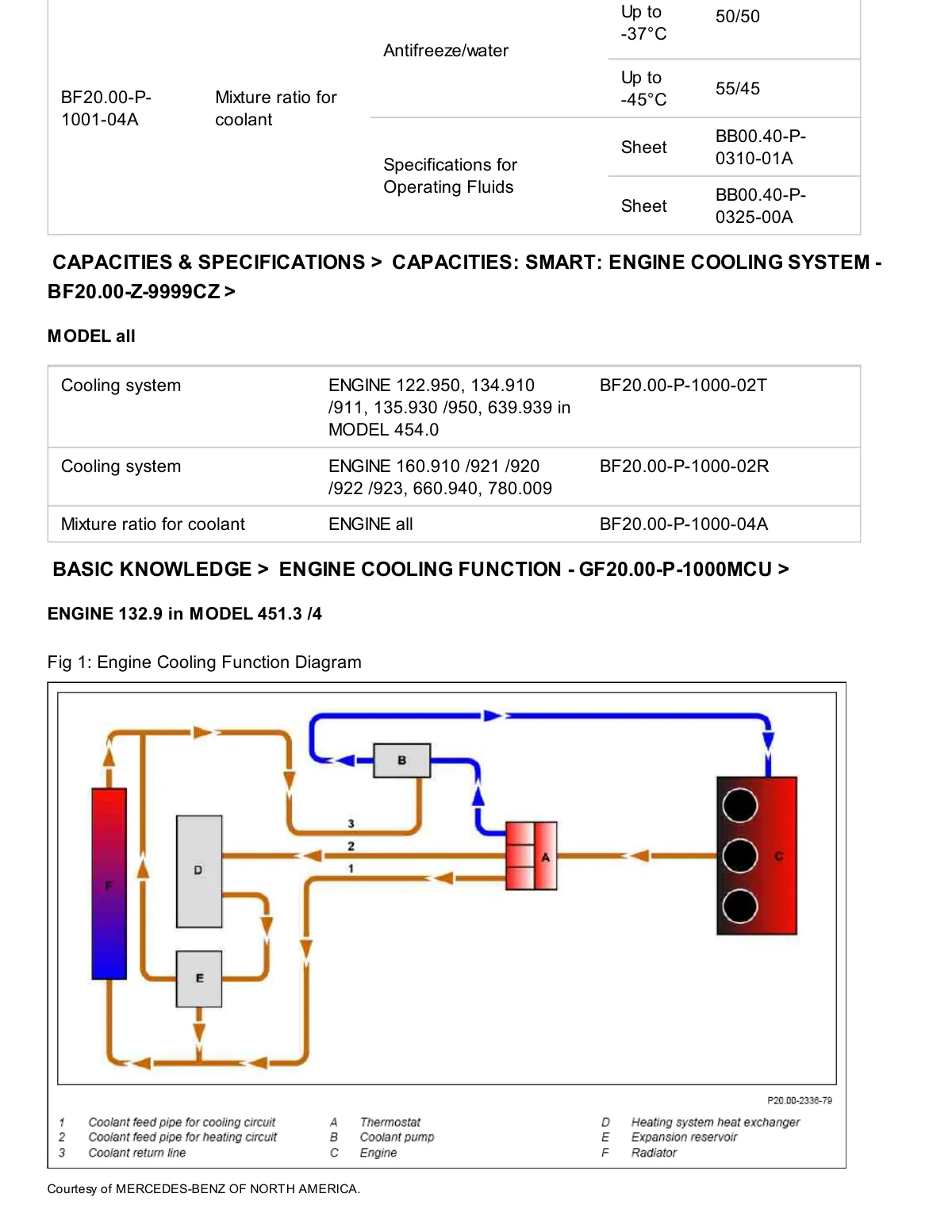

Engine cooling system function diagram for Smart models 451.3/4 with 132.9 engine showing coolant flow paths and major components.

Coolant flow circuit diagram with radiator, thermostat, pump, heater exchanger, and expansion reservoir labeled A through F.
