Instrument cluster indicator lamps and warning lights layout for Smart Fortwo 453 with BRABUS and CODE ICBA displays.

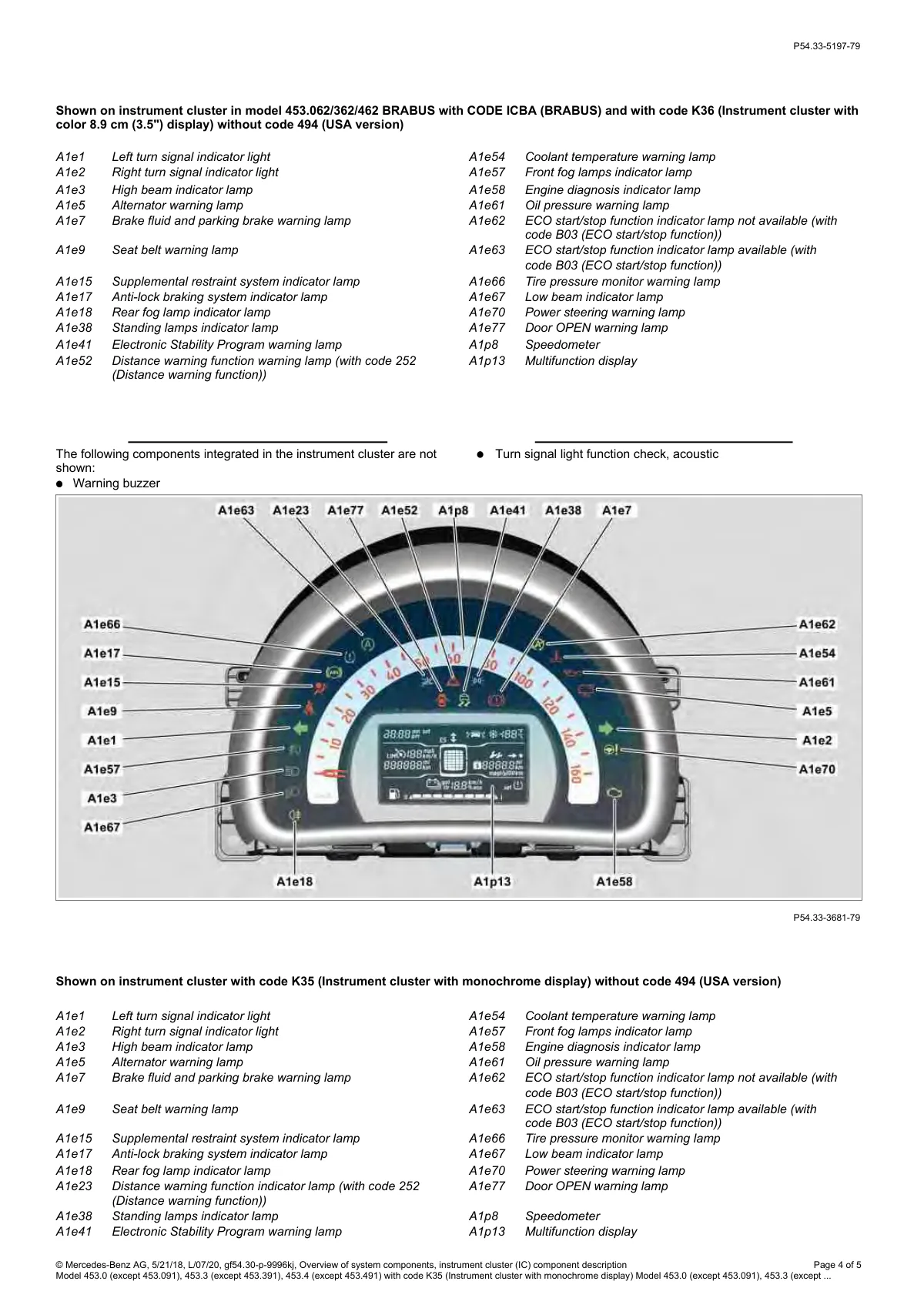

Labeled diagram of circular instrument cluster showing warning lamp locations and callout legend.
