Dump valve types comparison: diaphragm, piston, and sequential designs with operation principles and characteristics.

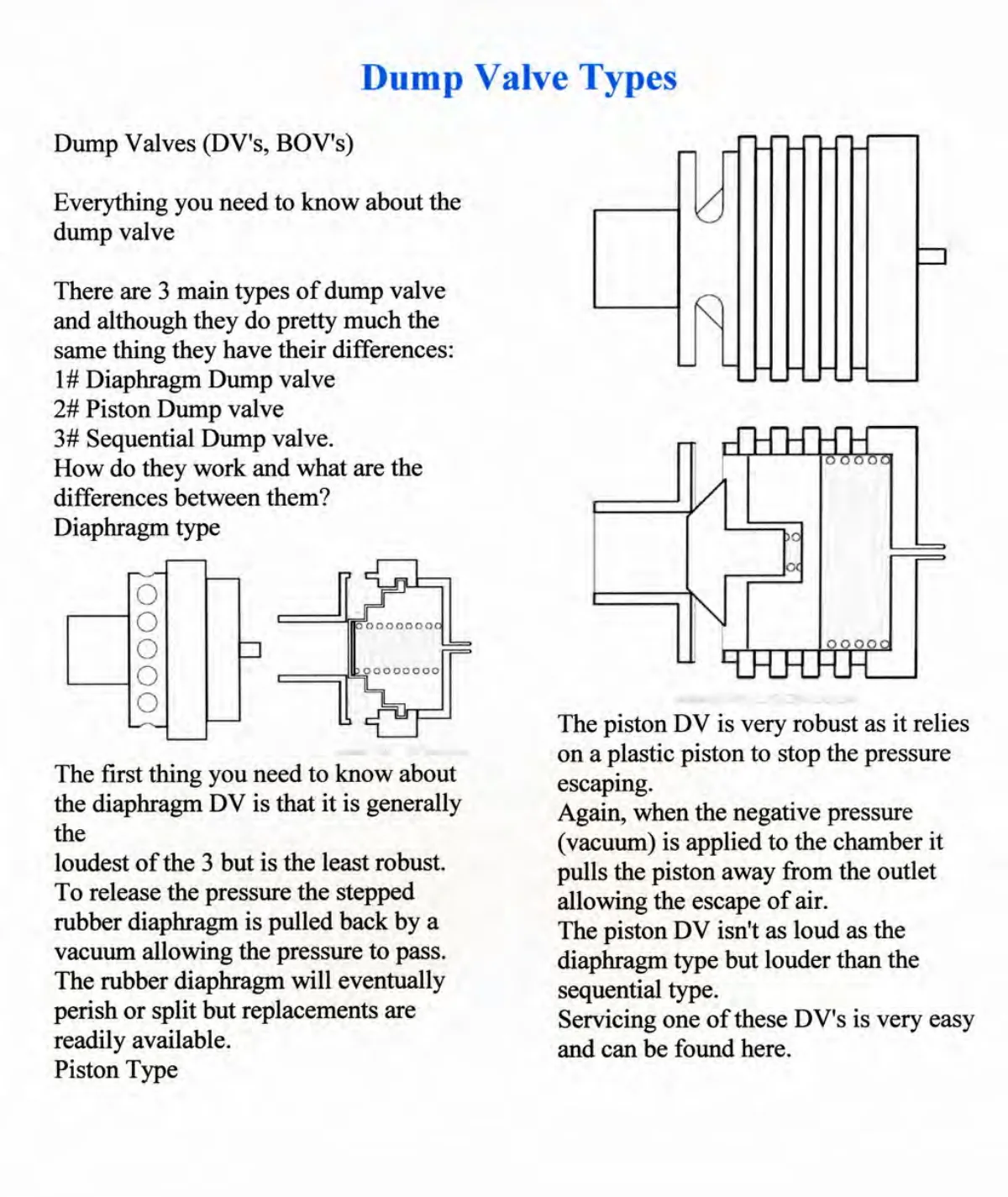

Three dump valve designs shown in cross-section with explanatory text about diaphragm, piston, and sequential types.
