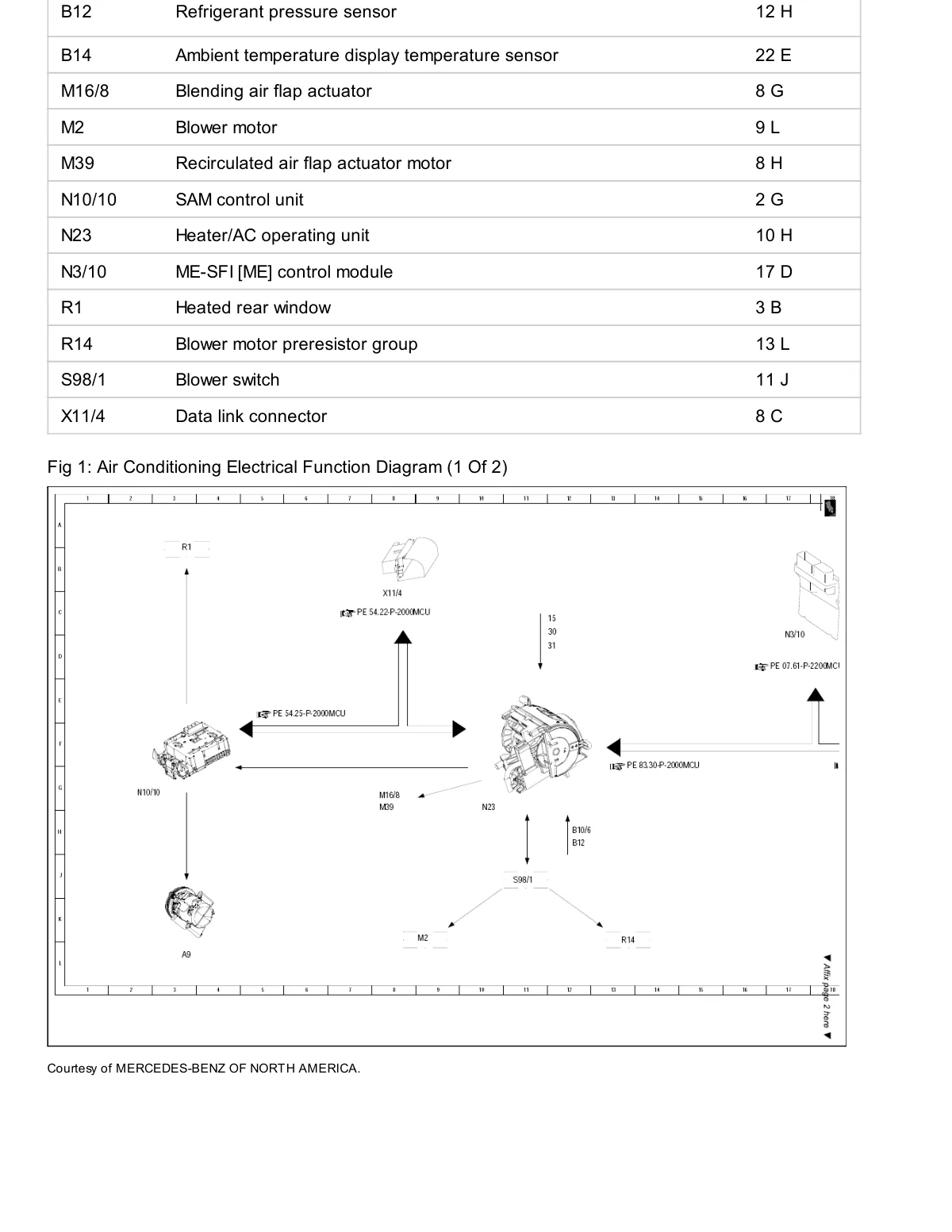

Air conditioning electrical function diagram showing sensor, control module, and actuator interconnections for Smart 450/451/452/454 vehicles.

See all Electrical figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
