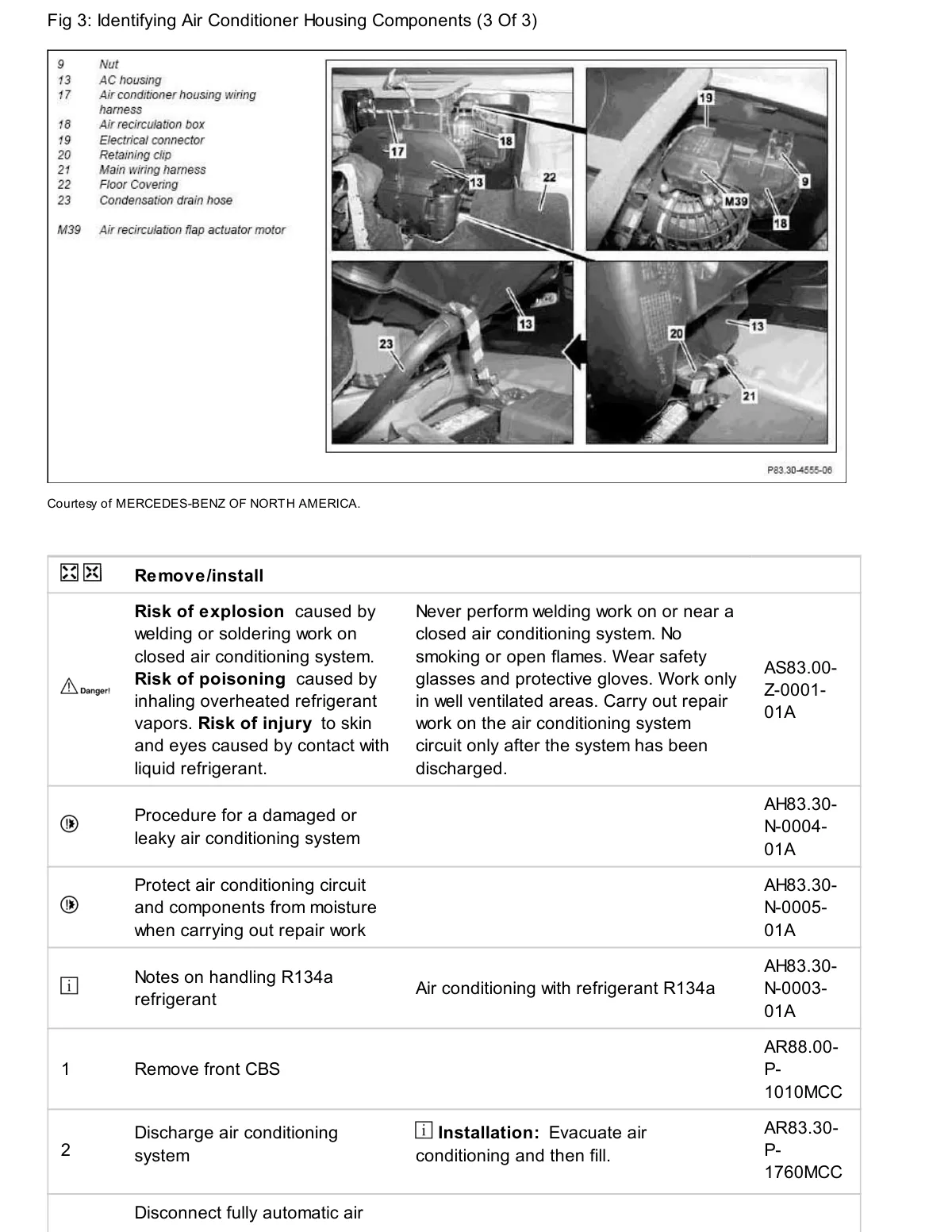

Air conditioner housing components identification with four detail photographs showing housing, wiring harness, recirculation box, connectors, and drain hose locations.

Four black and white photos identifying AC housing parts with numbered callouts 9-23 and component M39.

View full-size image ↗

See all HVAC & Comfort figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
