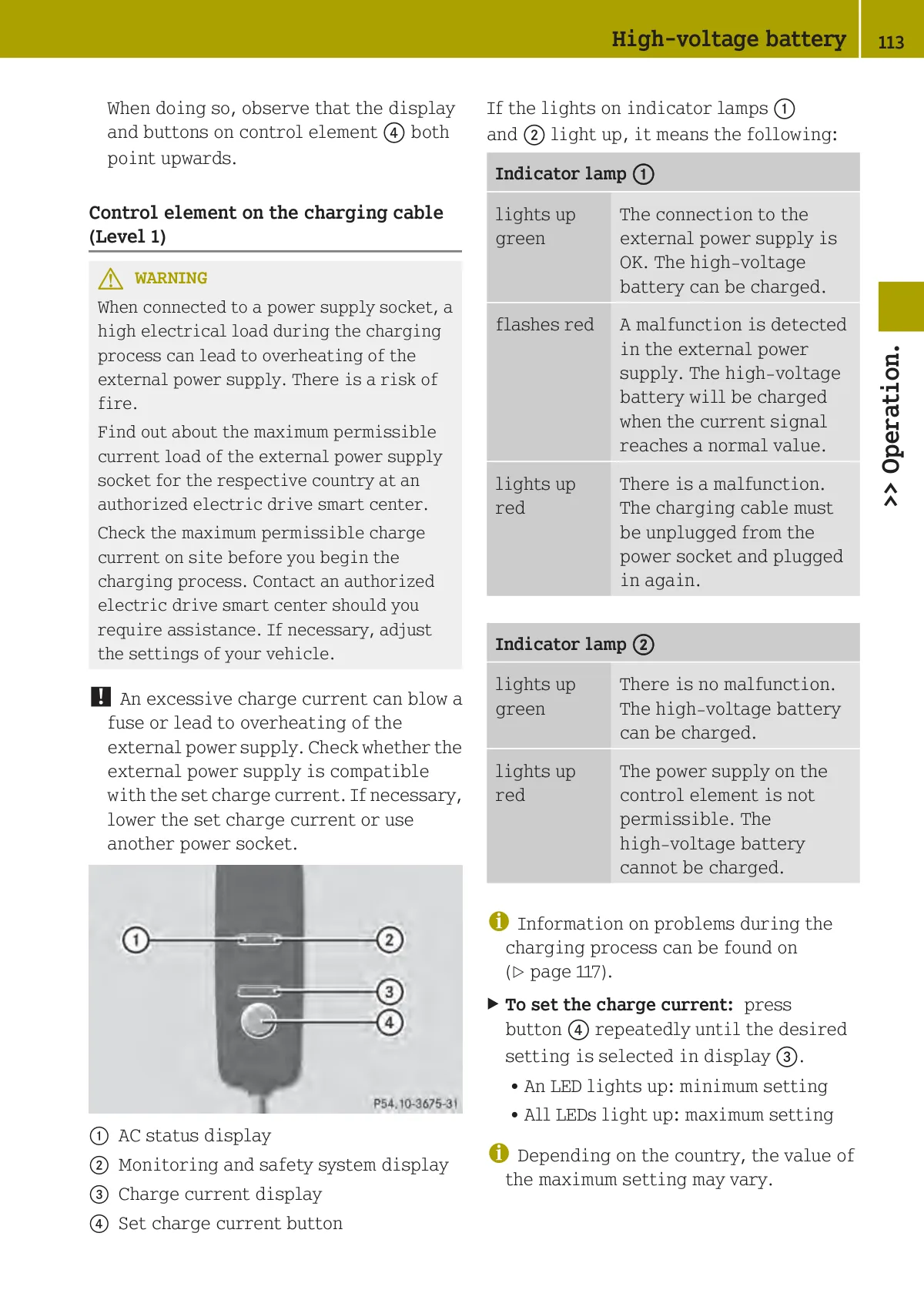

High-voltage battery charging cable control element (Level 1) with indicator lamp status meanings and charge current adjustment procedure.

Charging cable control panel with four labeled components: AC status, monitoring system, charge current display, and set button.

View full-size image ↗

See all EV-specific figures for the Fortwo (451), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
