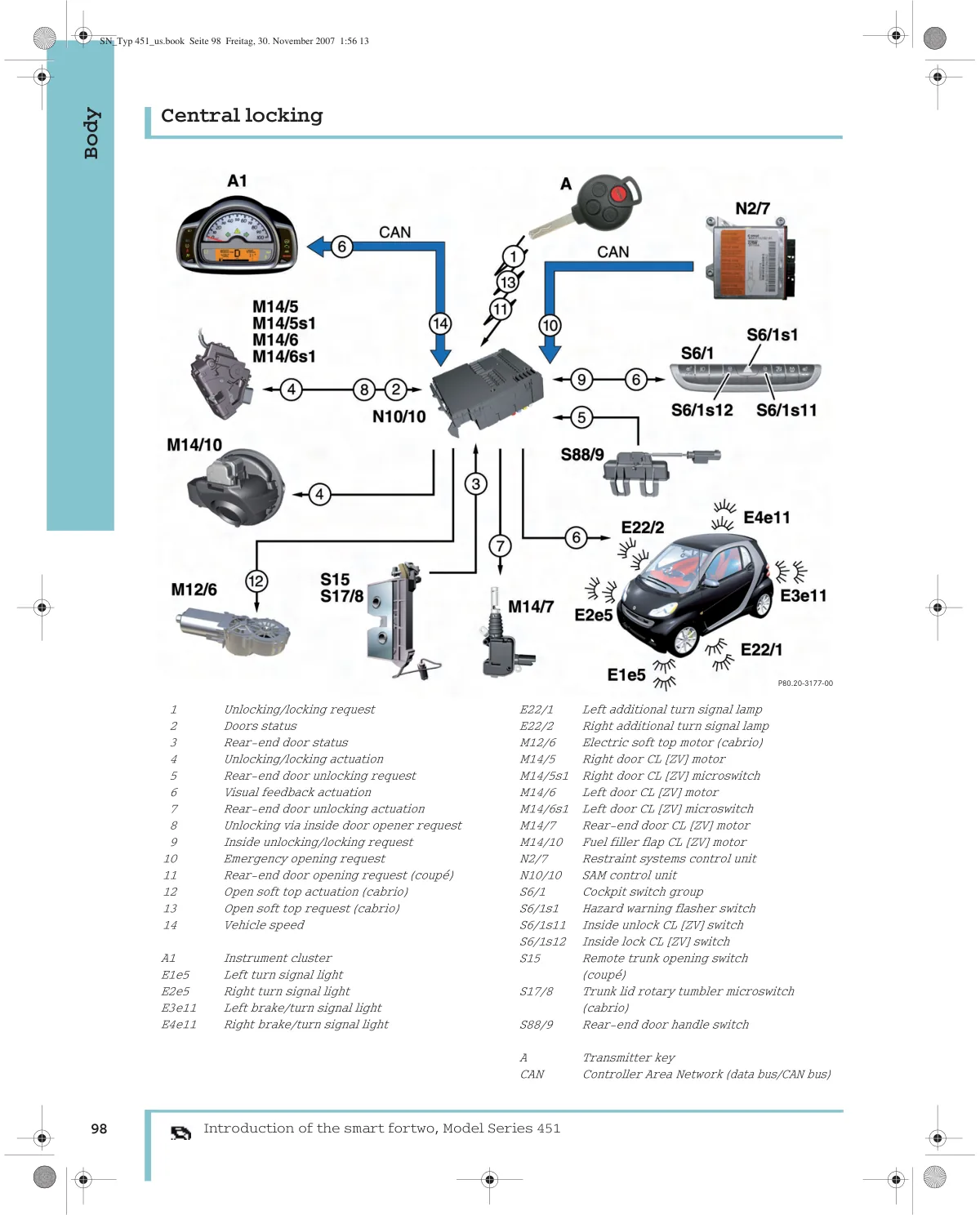

Central locking system schematic for smart fortwo 451, showing control modules, door locks, and CAN bus interconnections.

Wiring diagram of central locking system with numbered components and signal flow paths.

View full-size image ↗

See all Body & Interior figures for the Fortwo (451), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
