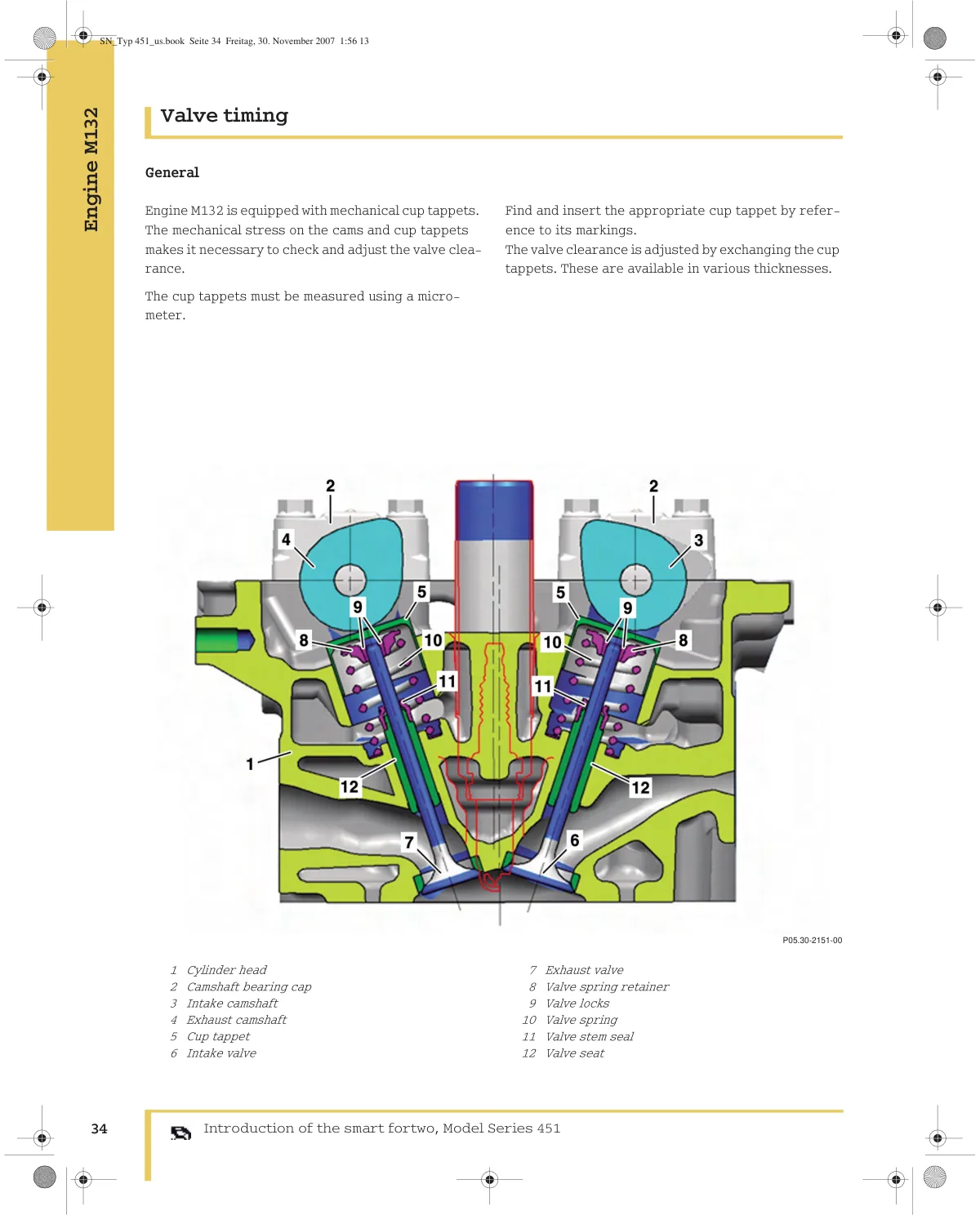

Engine M132 valve timing components and cup tappet adjustment for Smart Fortwo 451 mechanical system.

Cutaway engine diagram showing valve timing components, camshafts, and cup tappets with 12 numbered callouts.
