Model 452 roof peak seal rework procedure with Festo hose insertion and measurement specifications.

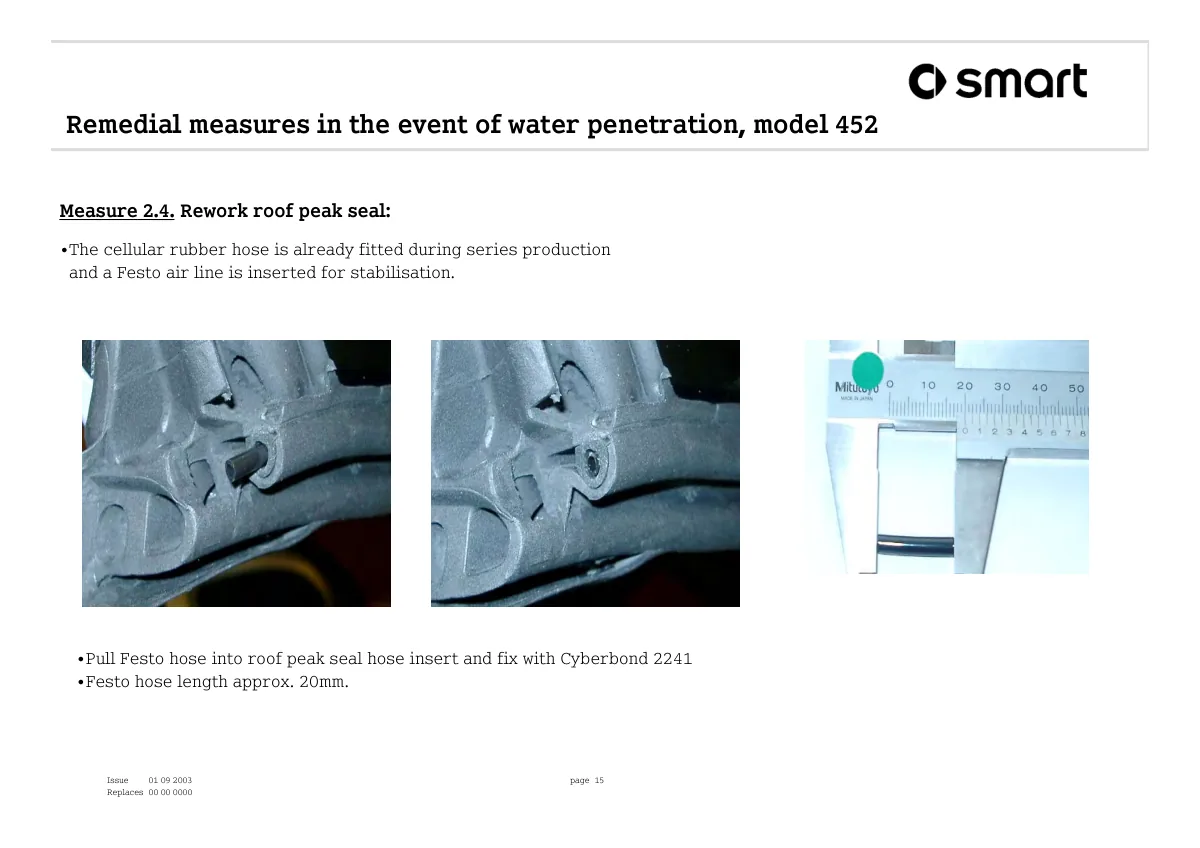

Roof peak seal repair steps for smart 452 showing hose insertion into seal and 20mm length measurement.
