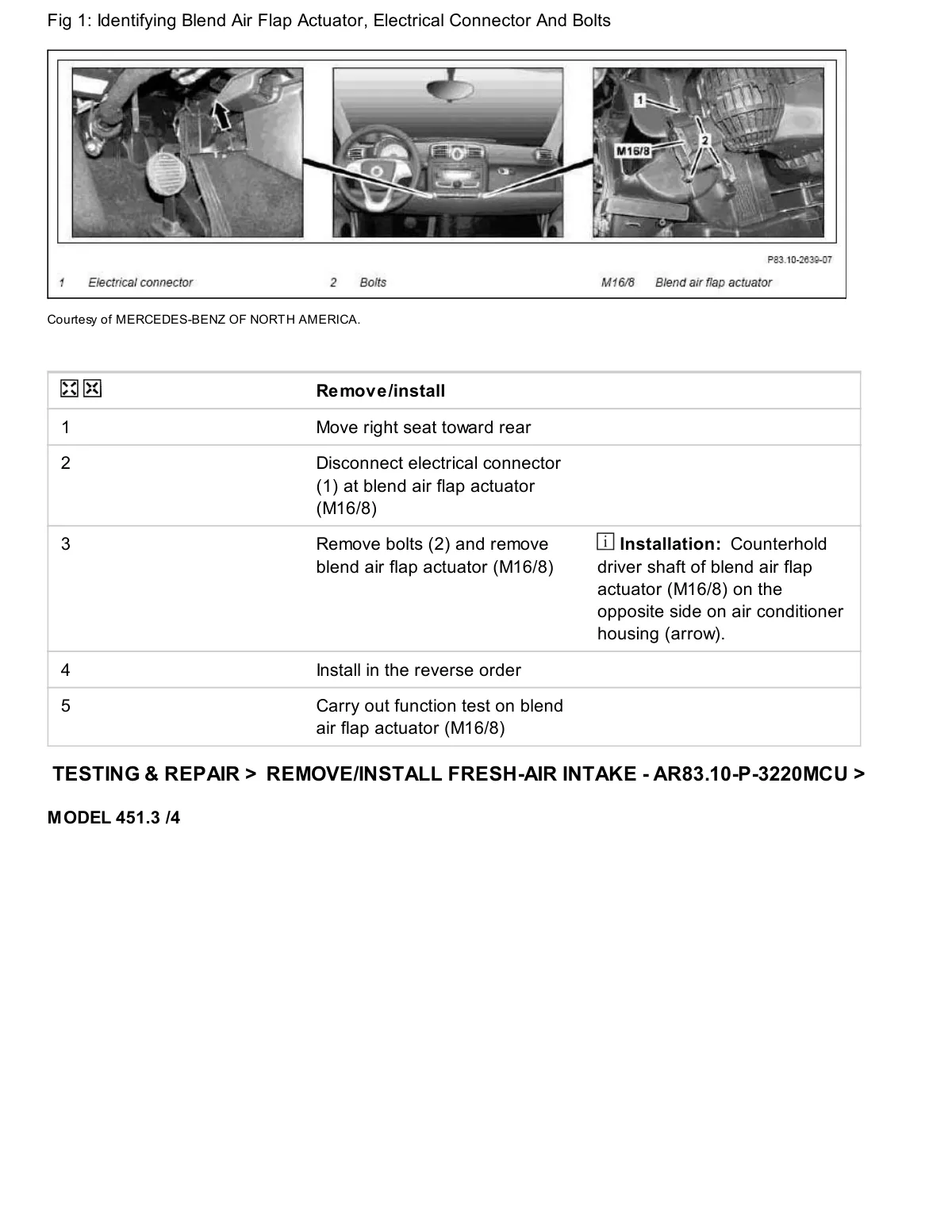

Blend air flap actuator M16/8 removal and installation procedure with electrical connector, bolts, and location identification for Smart model 451.

Three-panel diagram showing blend air flap actuator location, electrical connector, and mounting bolts on Smart 451 HVAC system.
