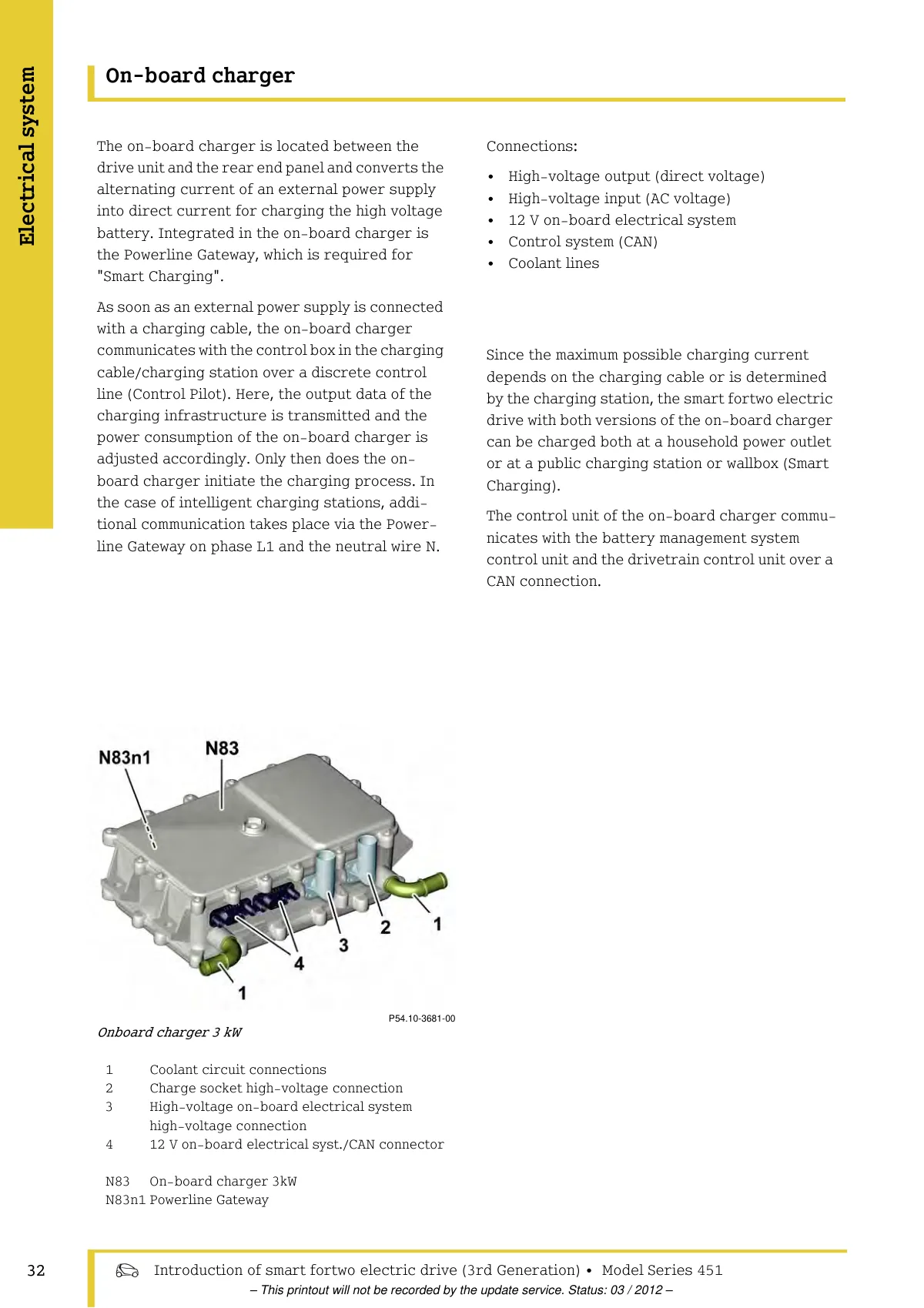

On-board charger 3 kW location, connections, and component layout for smart fortwo electric (451) charging system.
%20-%203rd%20Gen%20Introduction%20into%20Service%20Manual/p033.webp)
See all EV-specific figures for the Fortwo (451), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
