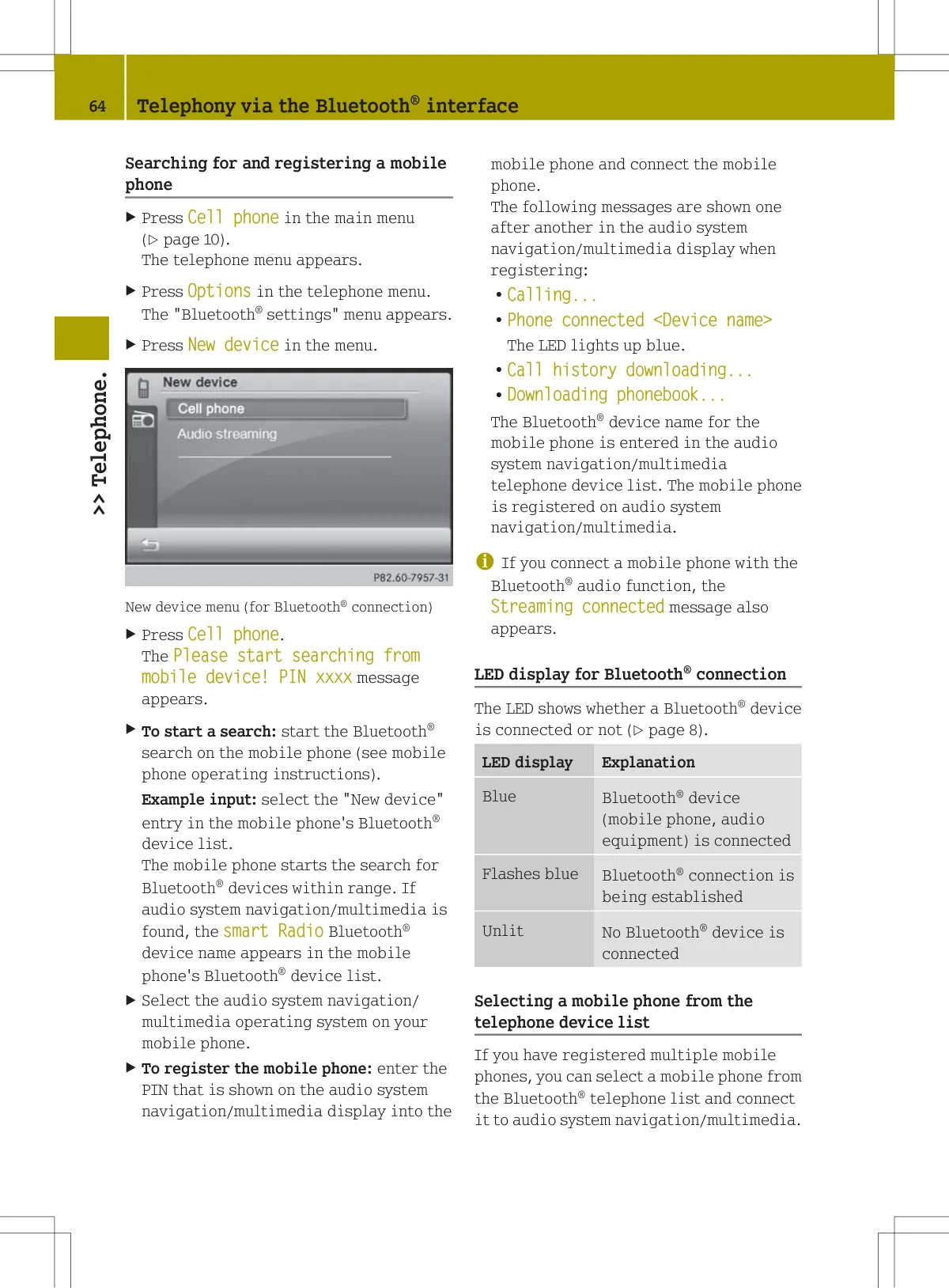

Bluetooth pairing and registration procedures for mobile phones in Smart audio system navigation interface.

Instructions for searching, registering, and connecting mobile phones via Bluetooth with LED indicator meanings.
