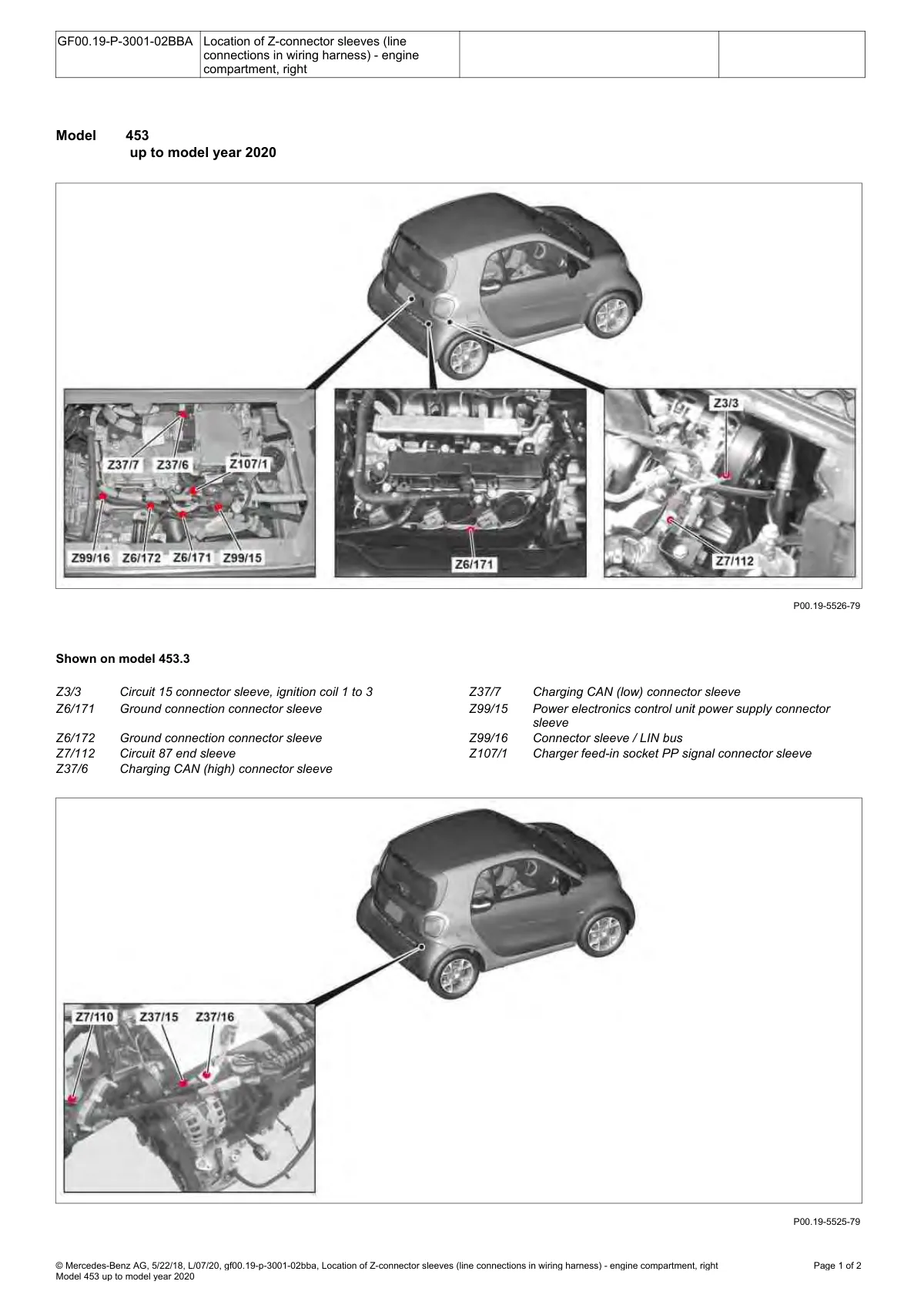

Z-connector sleeve locations in engine wiring harness, right side, chassis 453 up to 2020.

Engine compartment connector sleeve reference points on Smart Fortwo 453.

View full-size image ↗

See all Electrical figures for the Fortwo / Forfour (453), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
