Fuel pump and tank sensor removal/installation procedure for 454 chassis with numbered callouts and component labels.

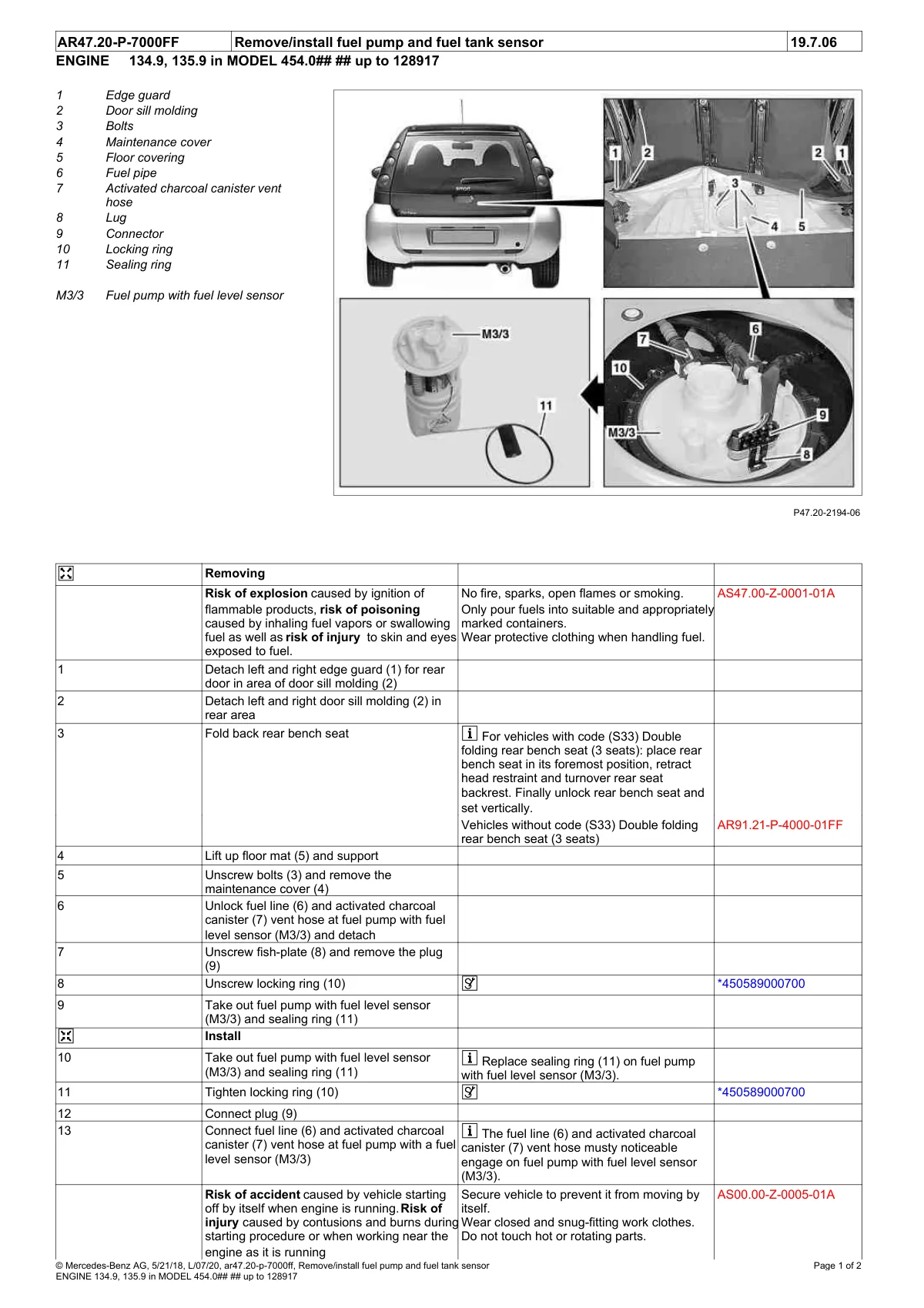

Service manual page showing fuel pump removal steps with vehicle diagram and component callout illustrations.
