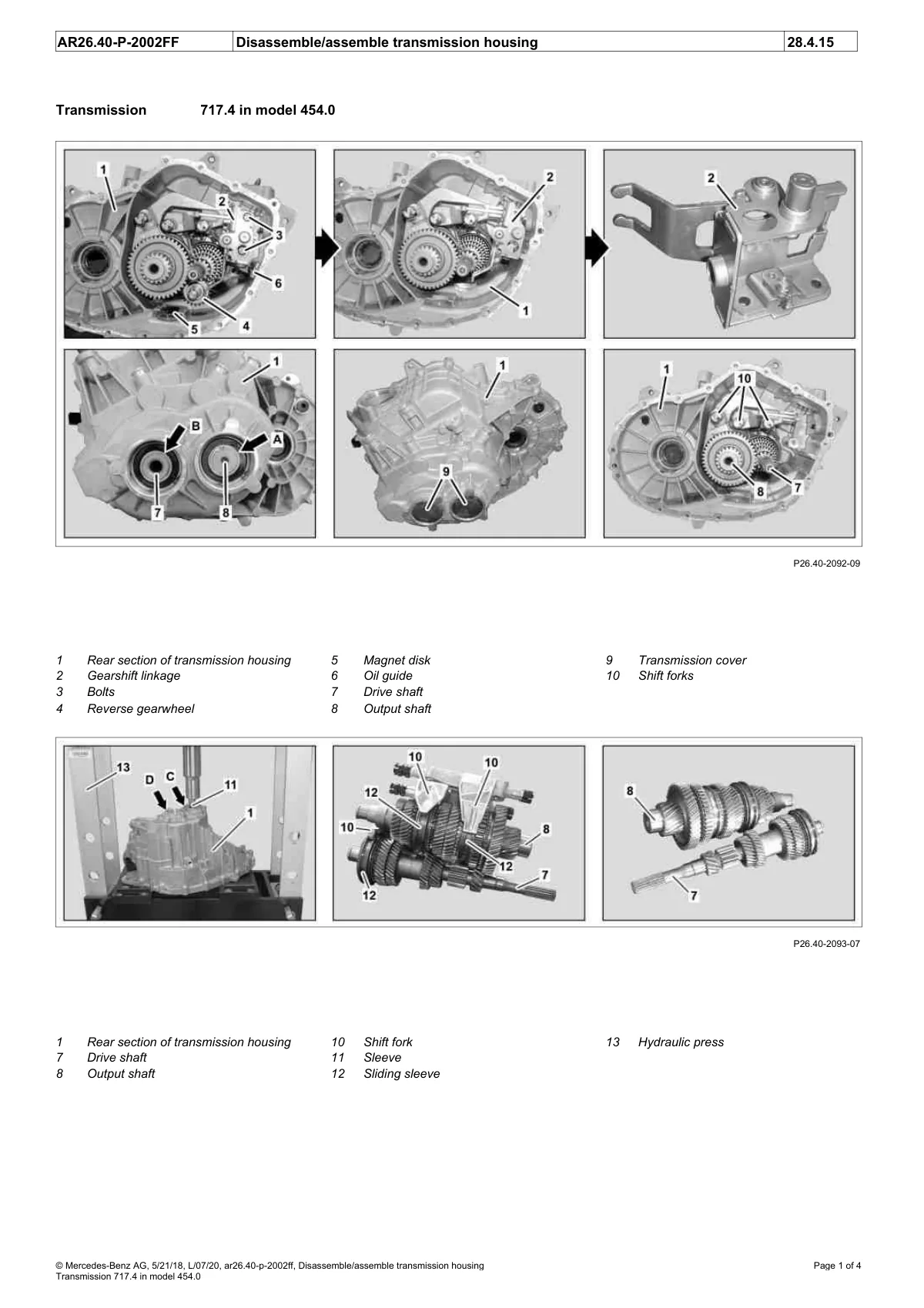

717.4 transmission disassembly and assembly sequence for Smart 454.0 model showing housing components and internal parts.

Exploded view diagrams of transmission housing disassembly with numbered callouts identifying gears, shafts, and internal components.
