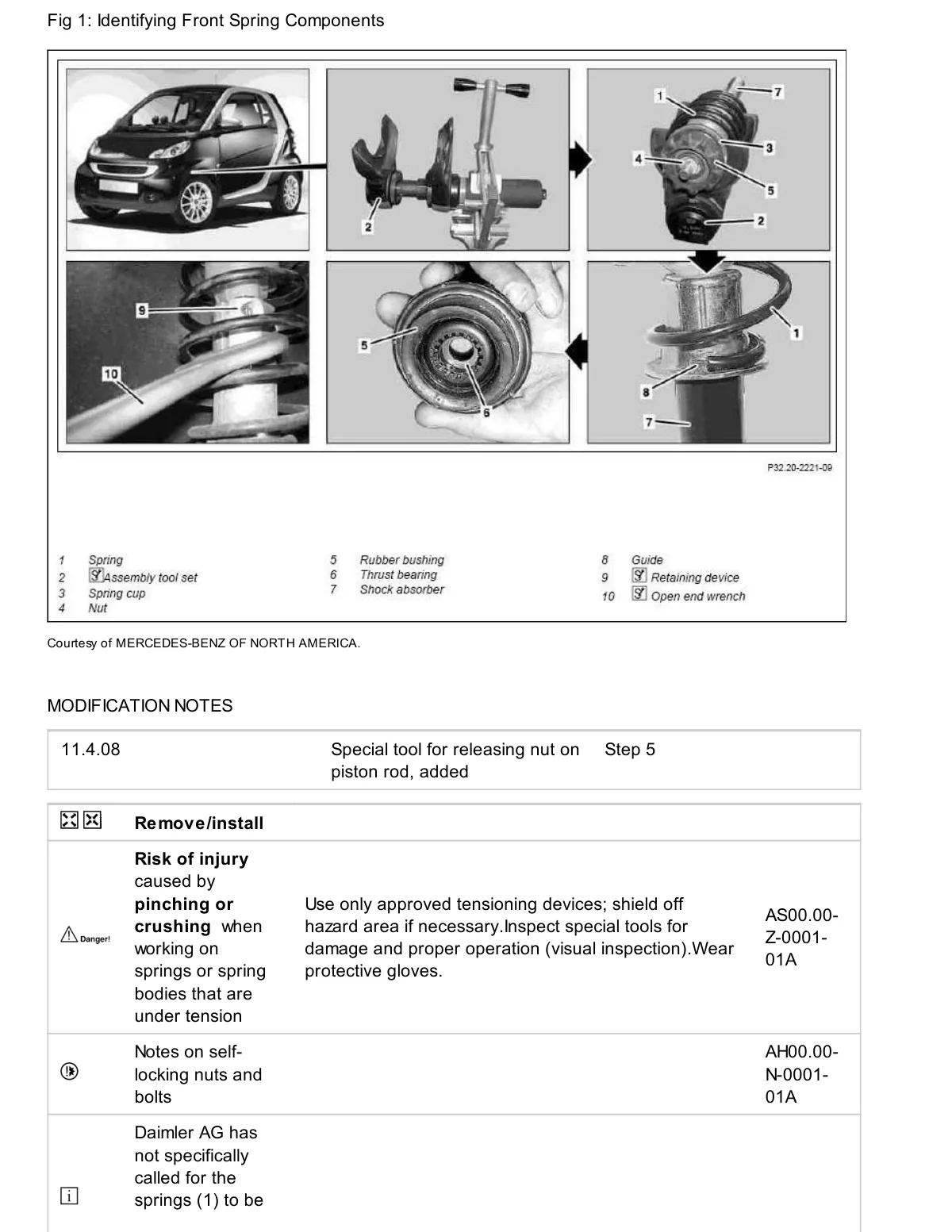

Front spring components identification and assembly procedure for Smart fortwo 450/451/452/454 with numbered callouts.

Exploded view diagram showing spring, assembly tool set, spring cup, nut, rubber bushing, thrust bearing, shock absorber, guide, retaining device, and open end wrench.

View full-size image ↗

See all Chassis figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
