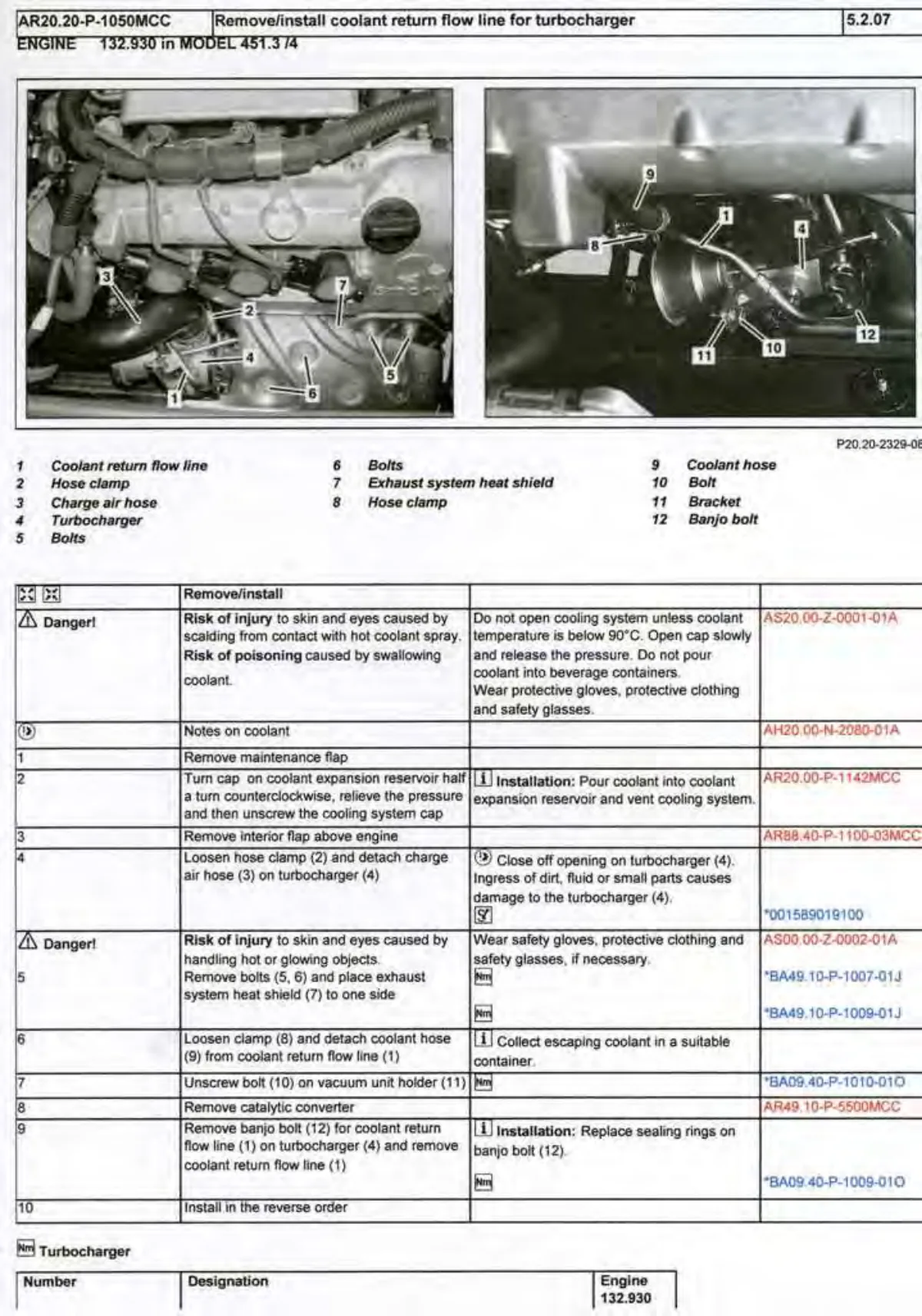

Remove/install coolant return flow line for turbocharger on 451.3/4 engine with numbered callouts and service procedure steps.

Engine bay diagram showing turbocharger coolant hose removal with 12 numbered callouts and two-view layout.
