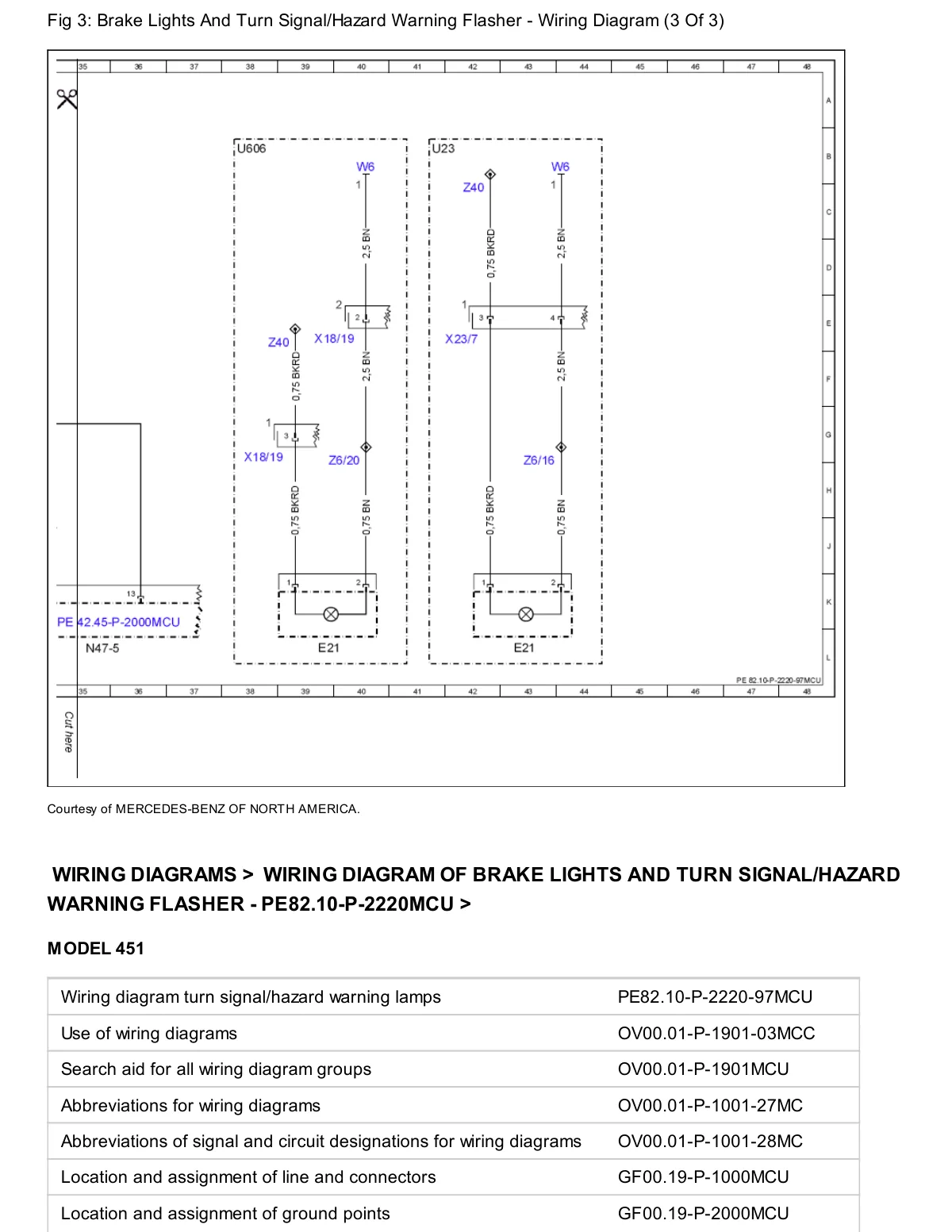

Brake lights and turn signal/hazard warning flasher wiring diagram (3 of 3) for Smart 451 model.

Wiring schematic showing brake light circuits, turn signal lamps, and hazard flasher connections with component labels and wire gauges.
