Remove/install piston rings for 281 engine in Model 453 smart fortwo with exploded views and service procedures.

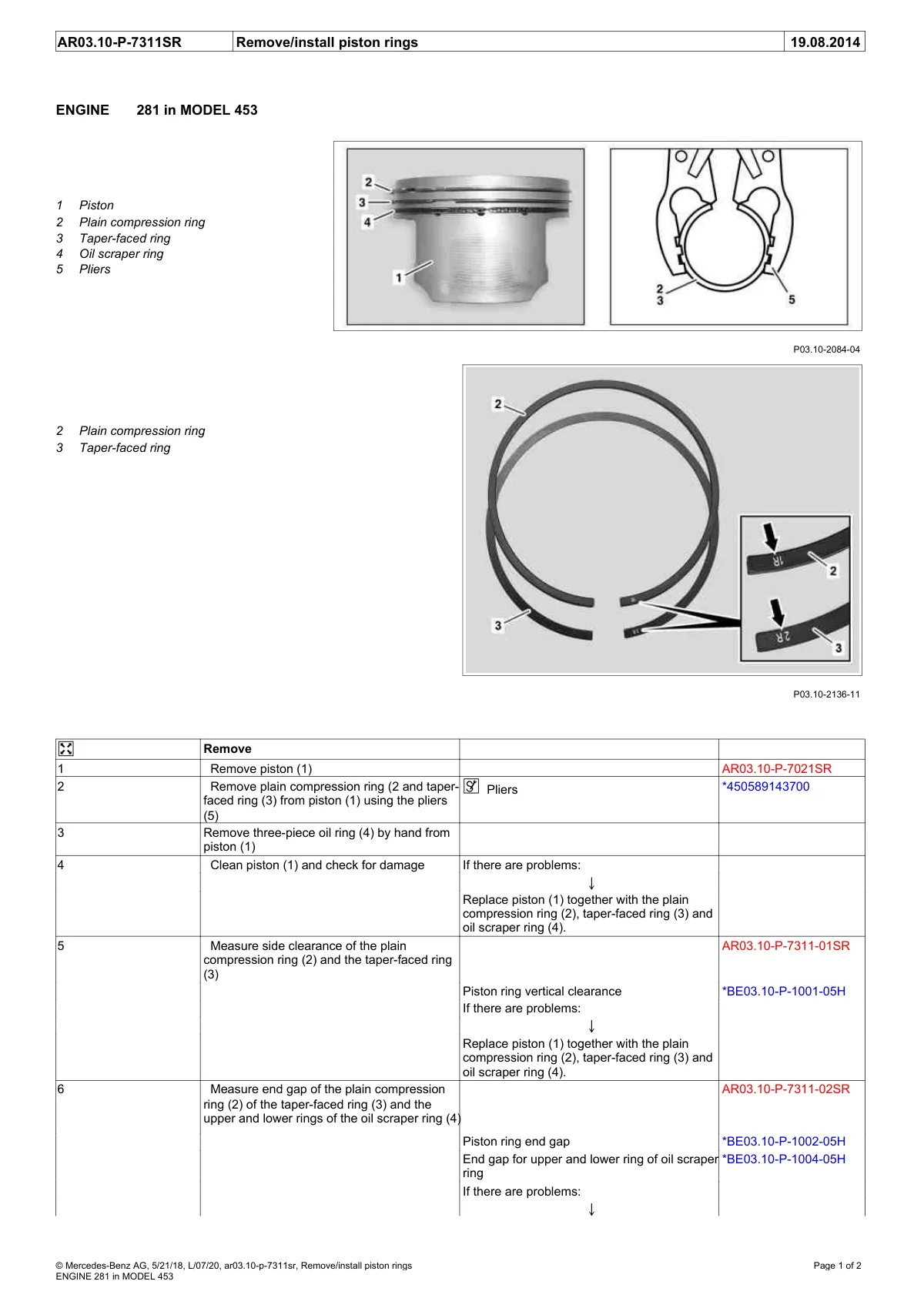

Piston ring removal and installation diagram showing plain compression ring, taper-faced ring, and oil scraper ring with numbered callouts.
