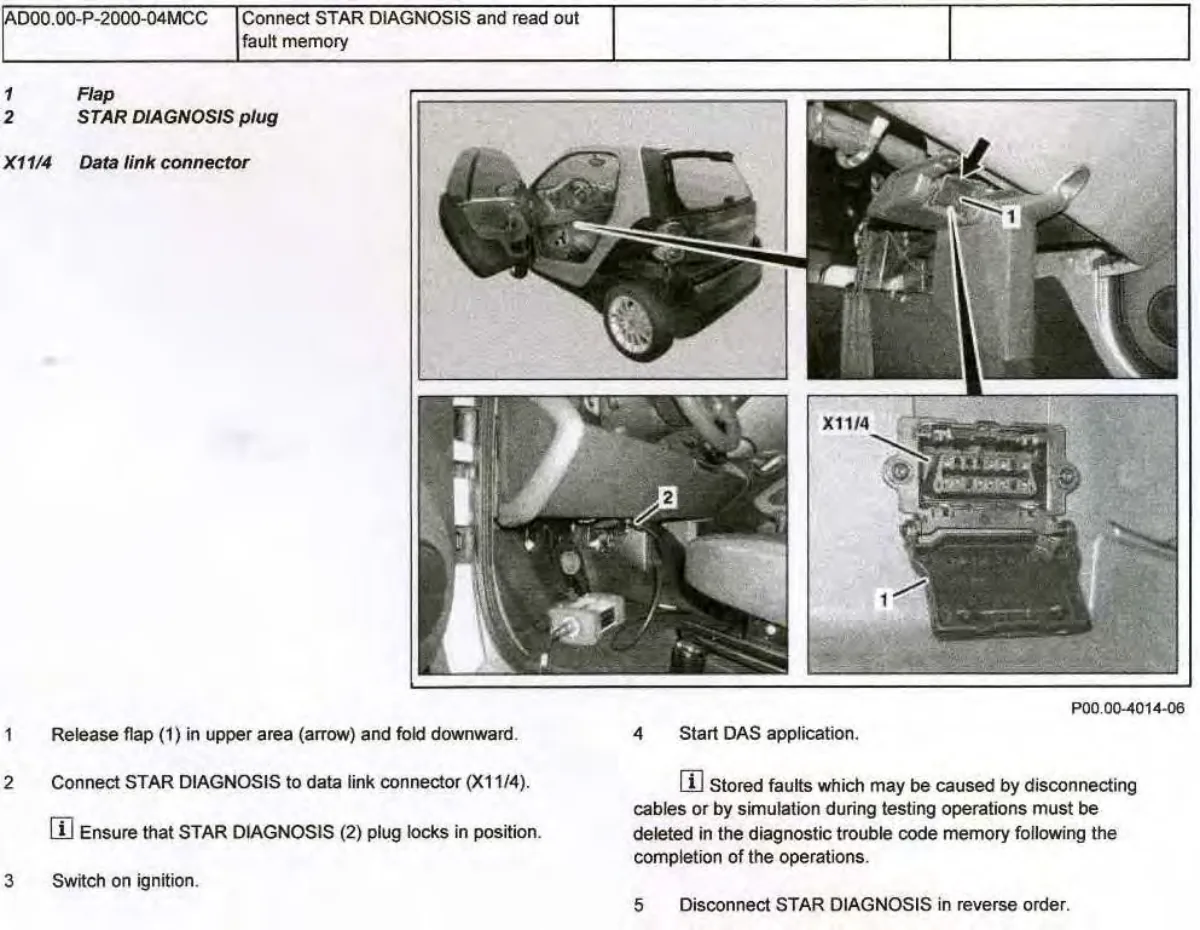

Connect STAR DIAGNOSIS to data link connector and read fault memory on smart fortwo.

STAR DIAGNOSIS plug connection procedure with numbered callouts showing flap release and X11/4 data link connector location.
