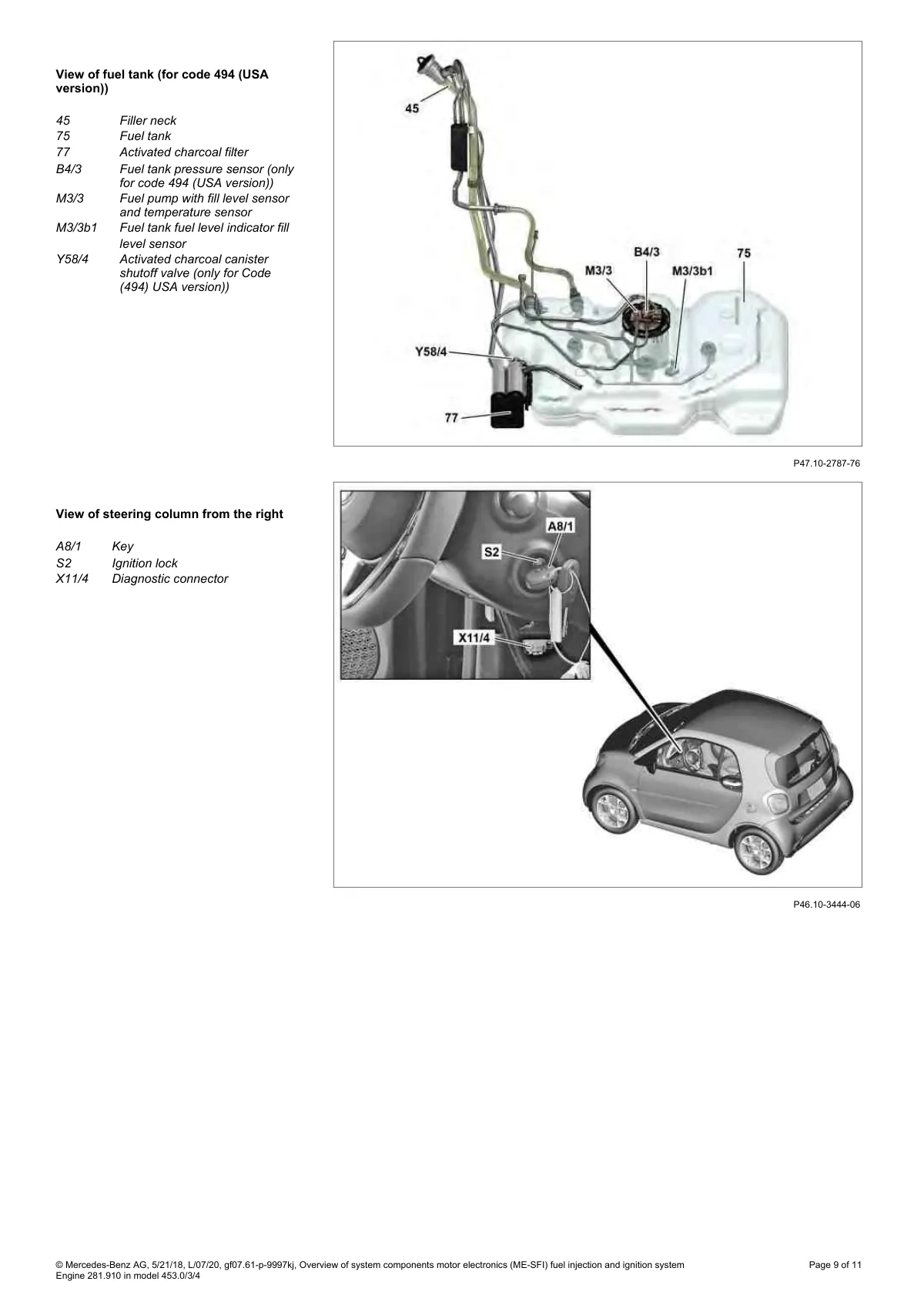

Fuel tank assembly with filler neck, pump, sensors, and charcoal filter for code 494 USA version chassis 494.

Exploded view of fuel tank components with labeled parts and callouts.

View full-size image ↗

See all Powertrain figures for the Fortwo / Forfour (453), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
