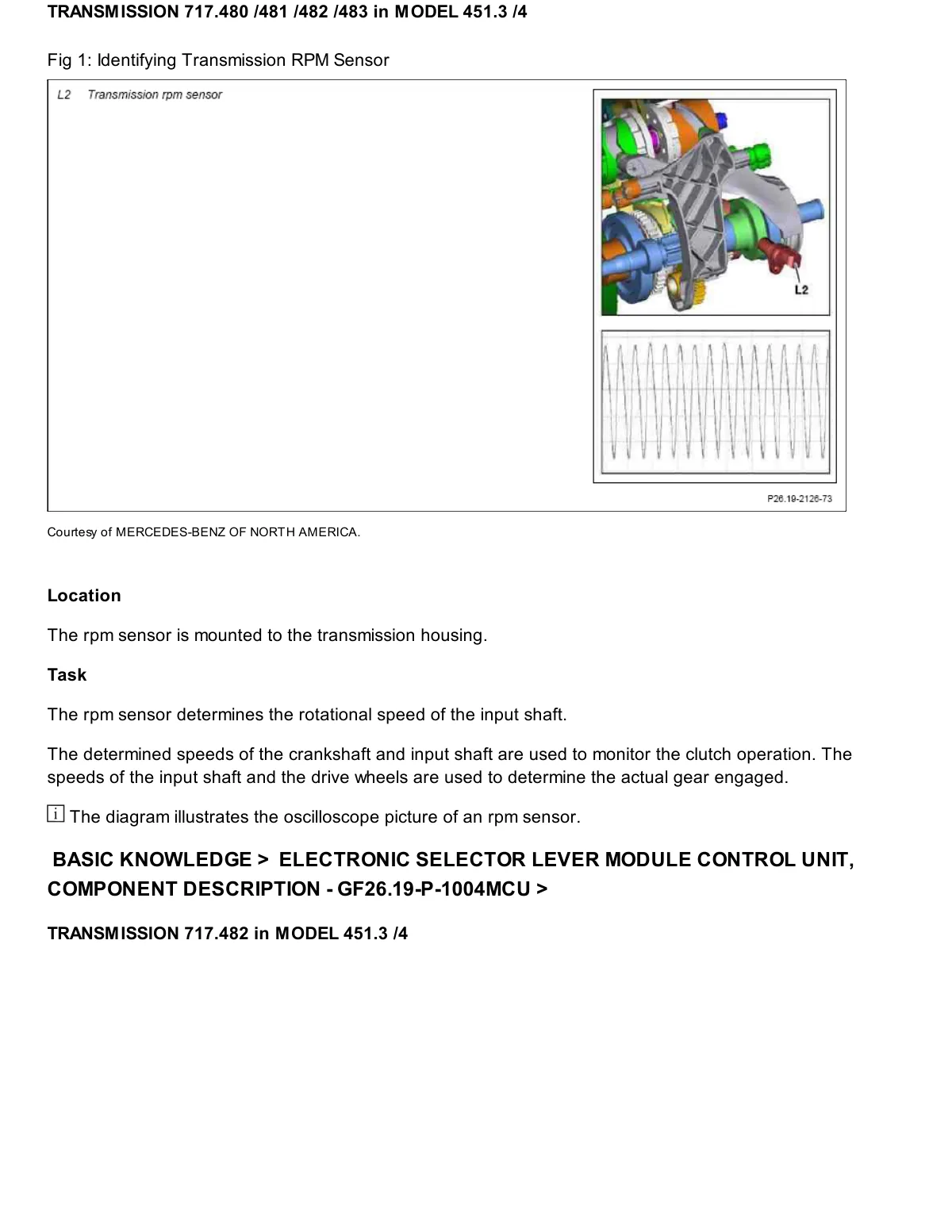

Transmission RPM sensor location and oscilloscope waveform for model 451.3/4 transmissions 717.480/481/482/483.

Colored transmission housing with labeled RPM sensor L2 and corresponding oscilloscope signal waveform diagram.
