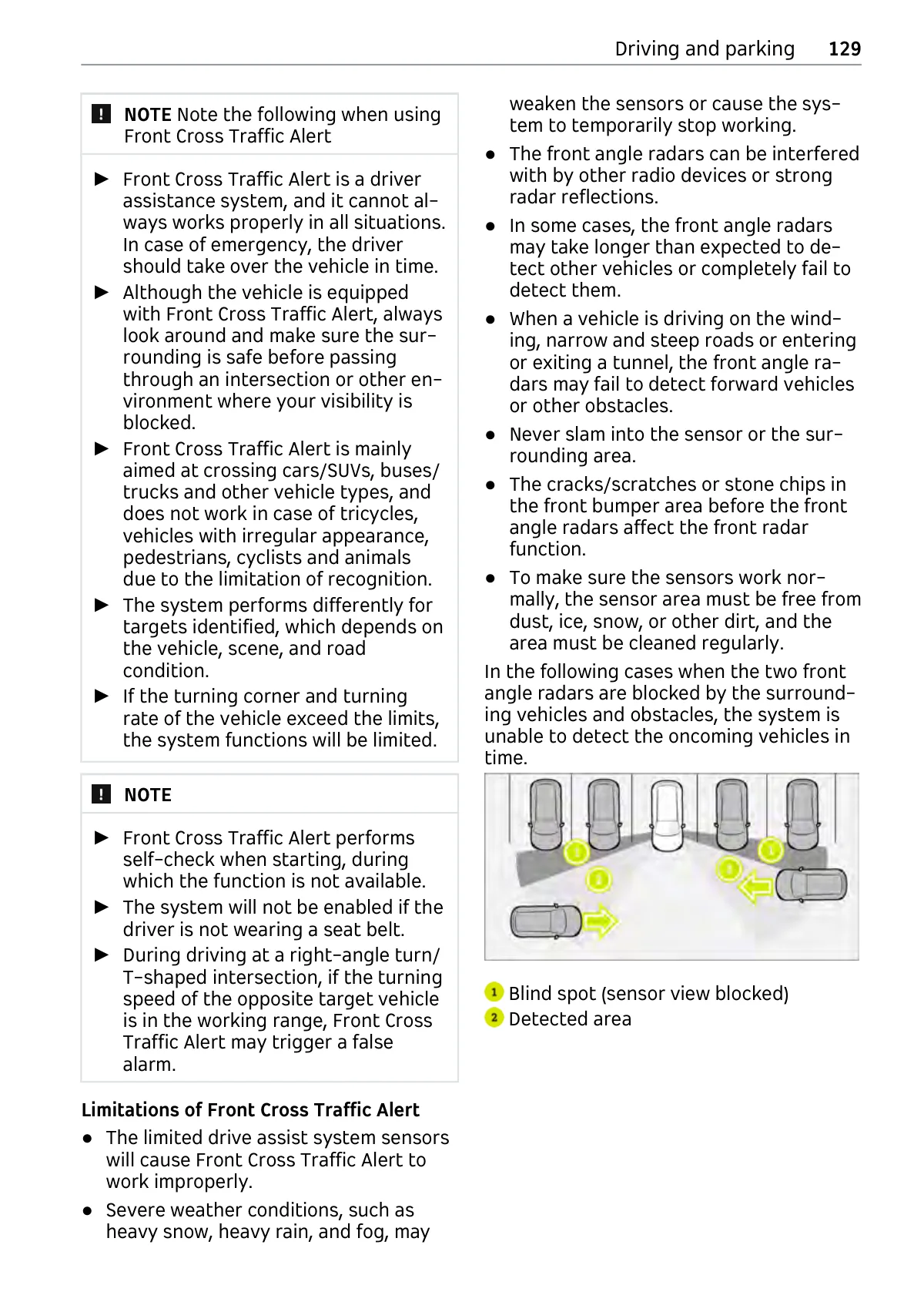

Front Cross Traffic Alert system notes, limitations, and sensor detection diagram showing blind spots and detection areas.

Front Cross Traffic Alert documentation with overhead vehicle diagram showing sensor blind spots and detection zones.
