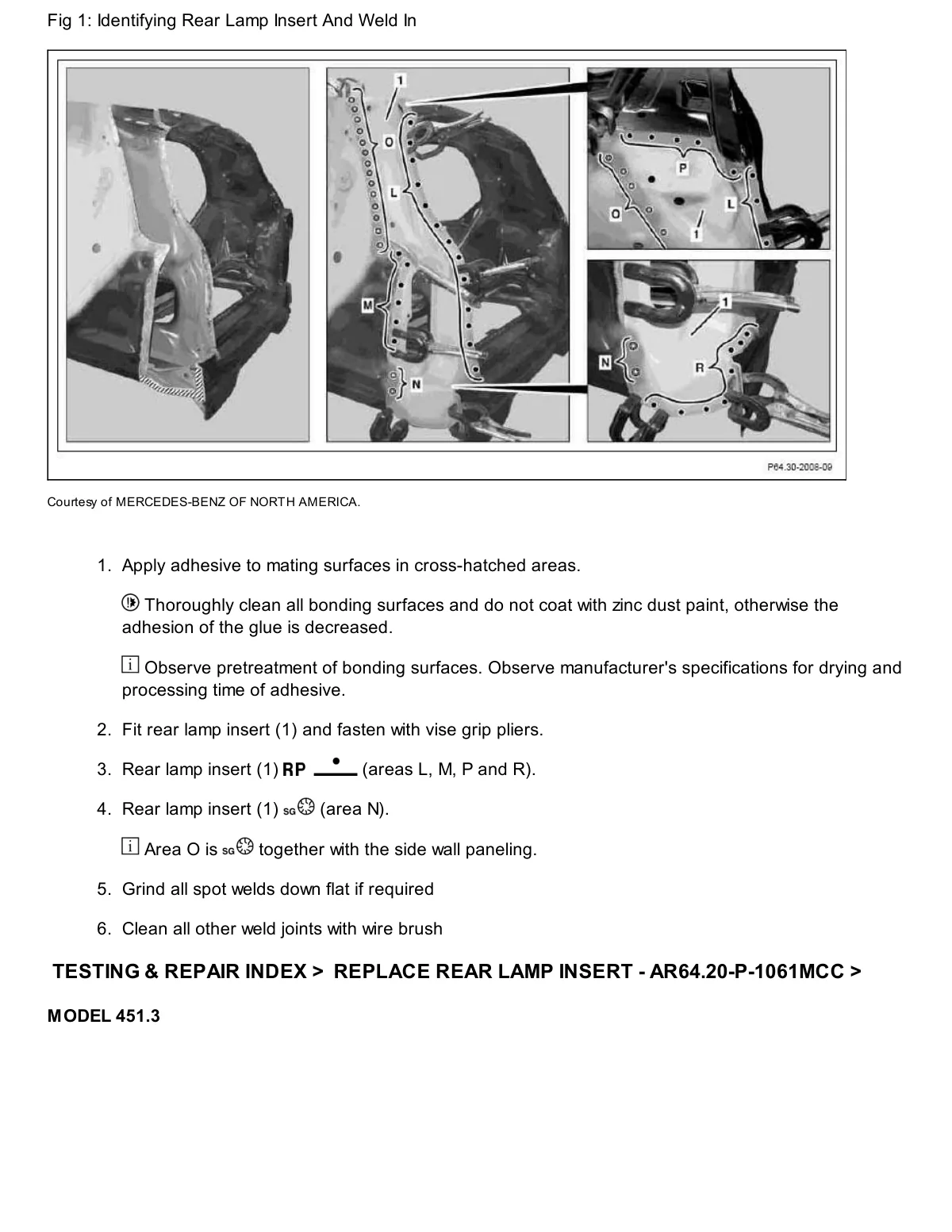

Rear lamp insert (451) assembly with adhesive application areas and weld point locations marked L, M, N, O, P, R.

Exploded and detail views of smart fortwo rear lamp insert with labeled bonding and welding zones.
