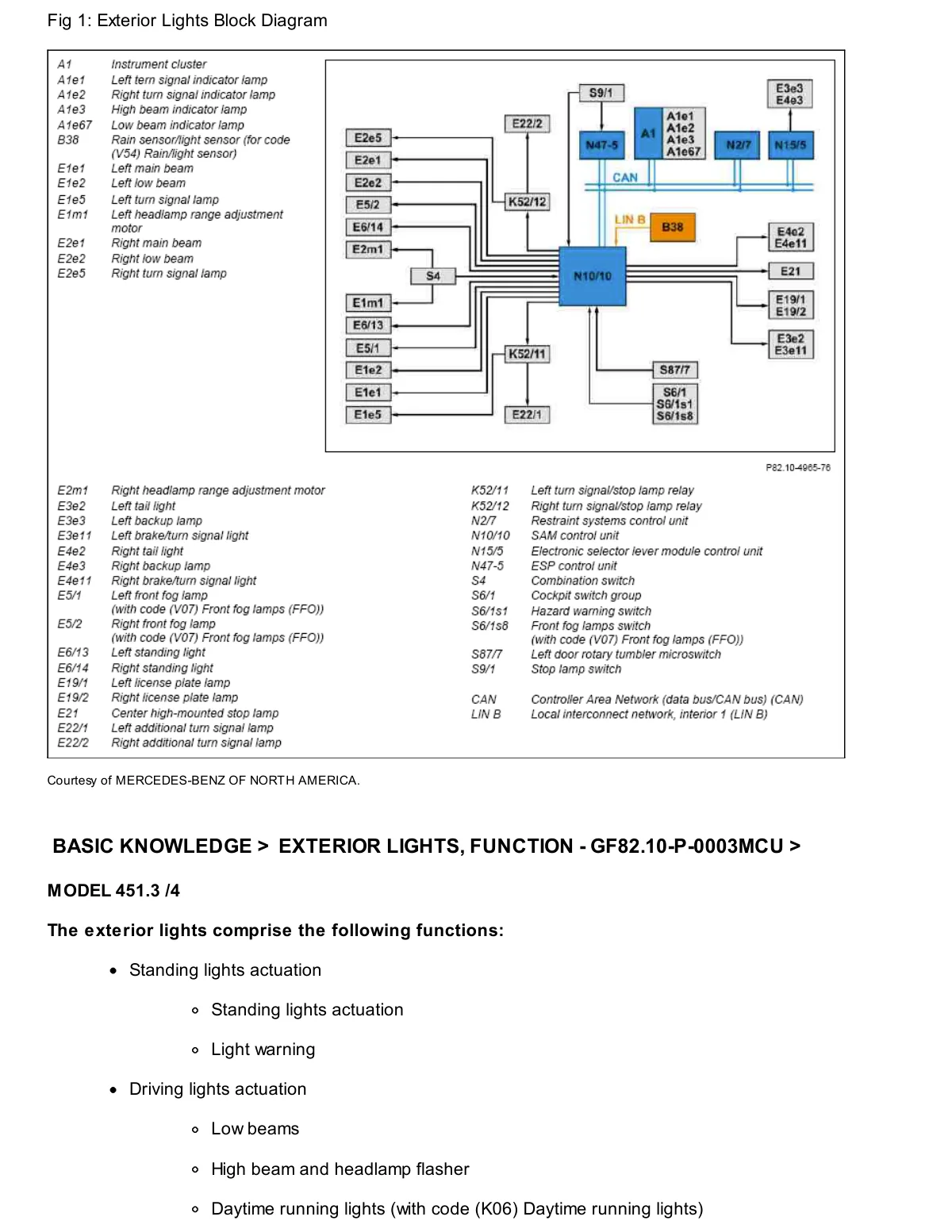

Exterior lights block diagram for smart 451 model showing CAN bus connections, relay modules, and lamp circuits.

Wiring block diagram for exterior lights system with control modules and lamp components.
