High-voltage battery cooling system components and heater location on Smart Fortwo 451 electric drive.

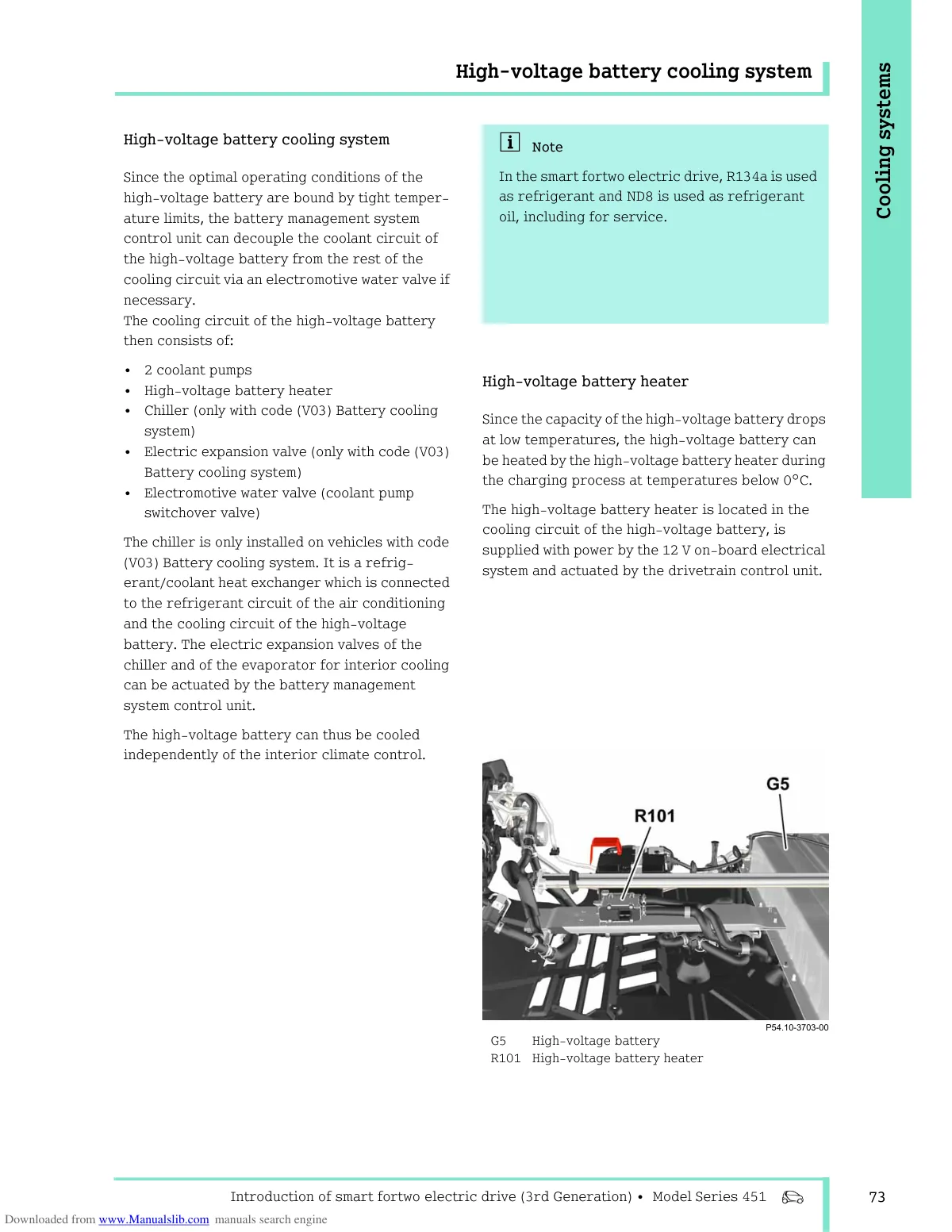

Diagram showing high-voltage battery (G5) and heater (R101) mounting positions on vehicle chassis.
