High-voltage battery charging procedures, indicator lamp meanings, and socket components for Smart EQ fortwo 453.

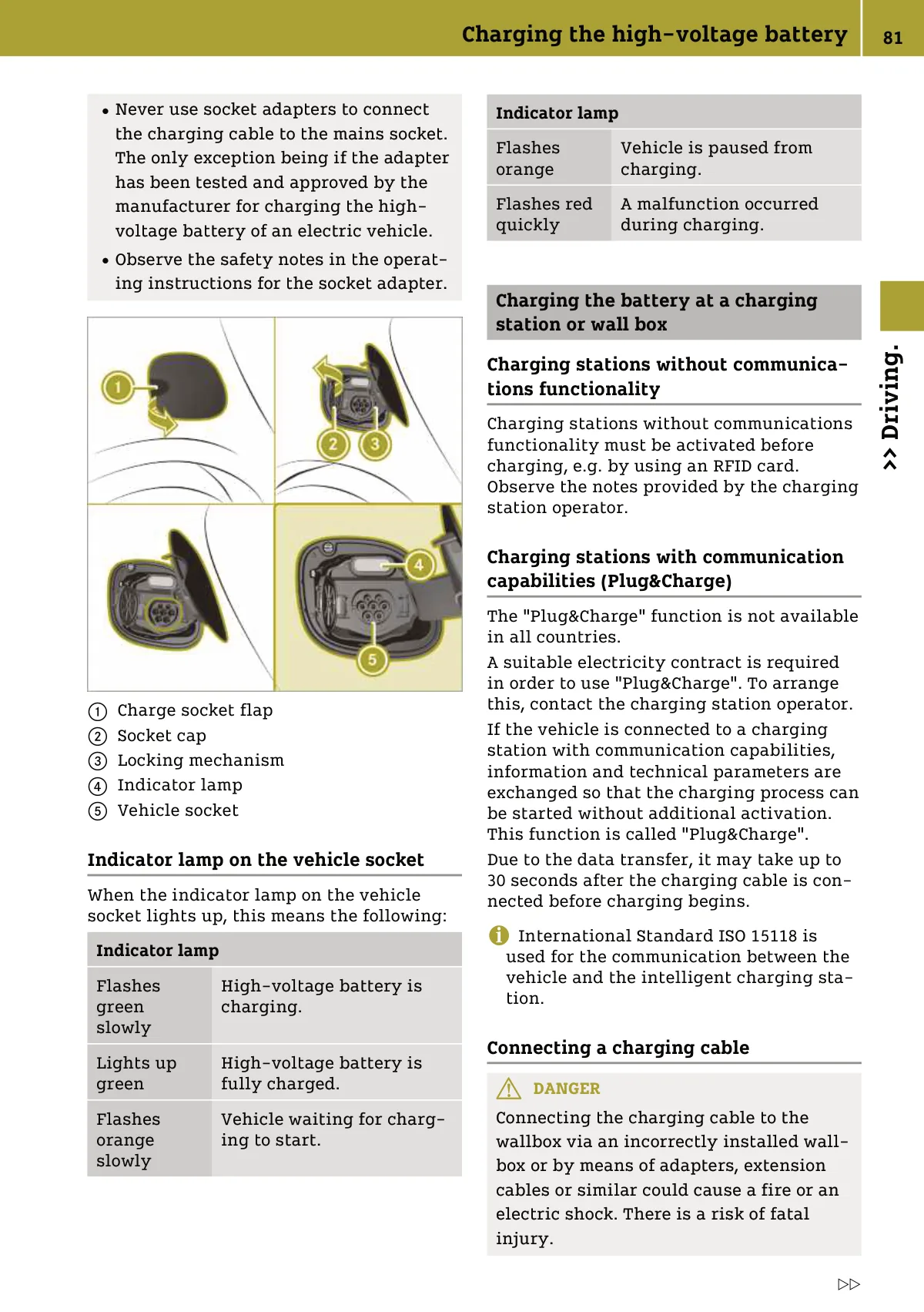

Charging port diagram with five labeled callouts and indicator lamp status table for electric vehicle.

View full-size image ↗

See all EV-specific figures for the Fortwo / Forfour (453), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
