Central locking system schematic for 451 Fortwo showing control unit, door actuators, sensors, and CAN bus connections.

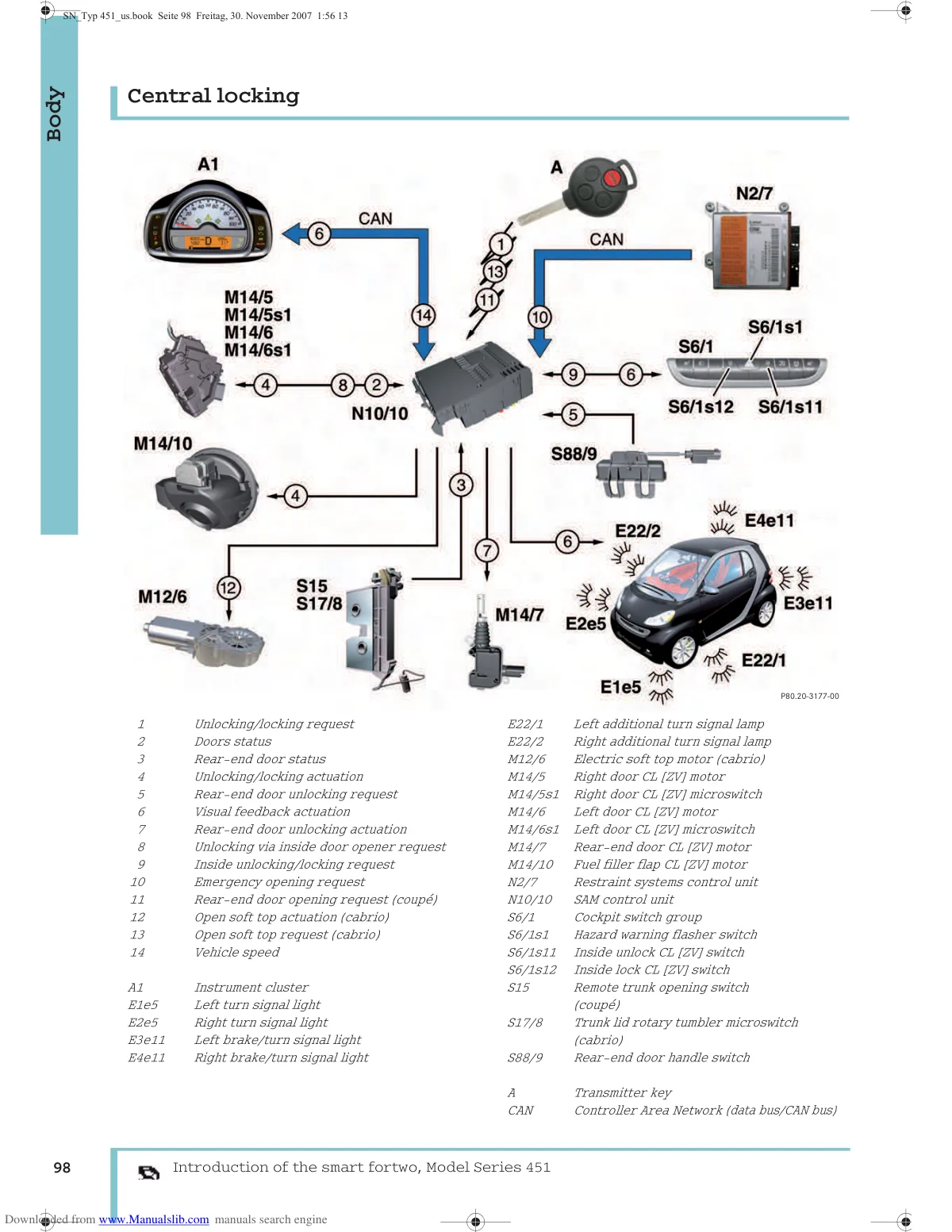

Wiring diagram of central locking system with numbered components and callouts for doors, locks, and control modules.
