SAM control unit fuse sockets and electrical connectors identification with fused function specifications and ampere ratings.

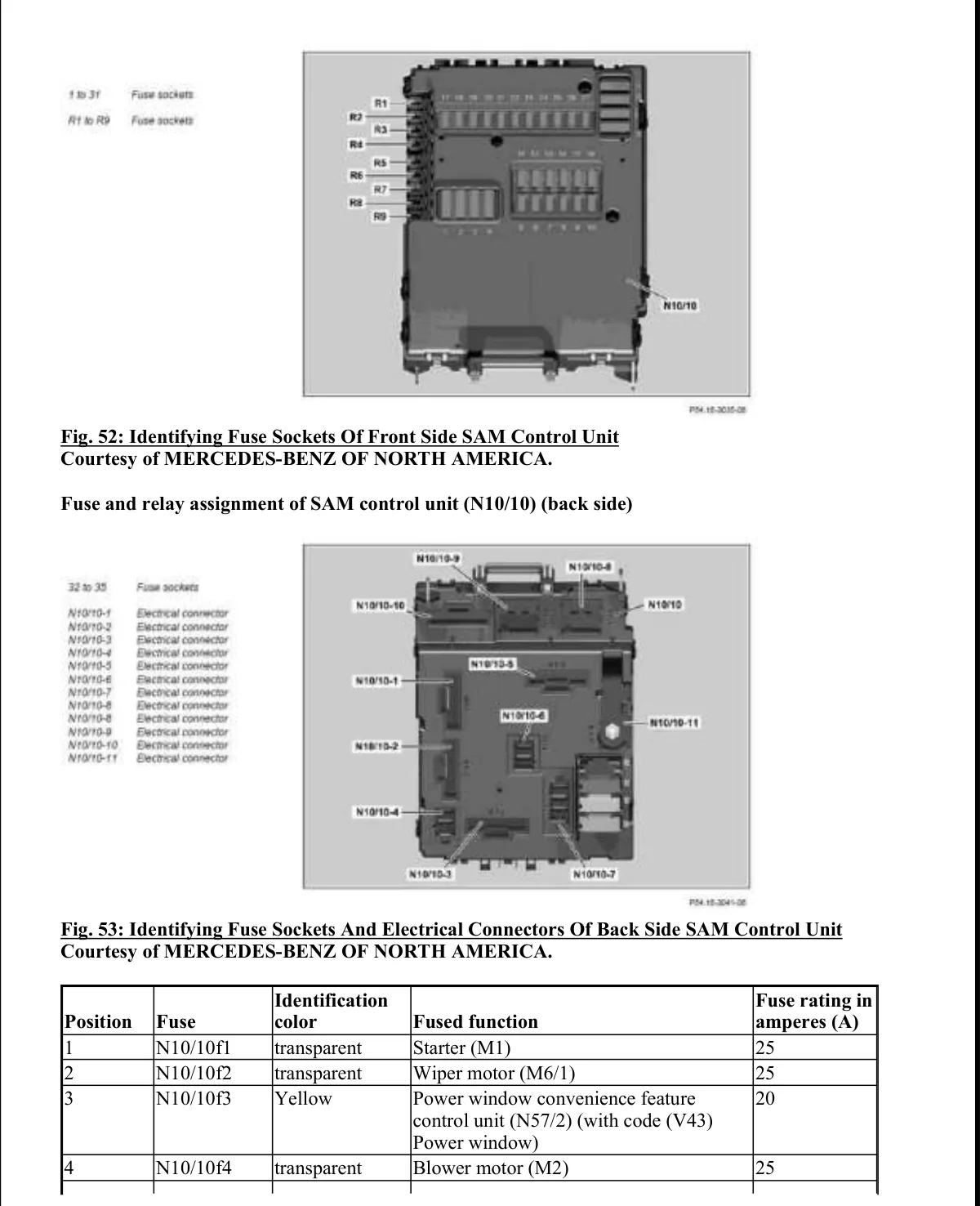

Fuse box diagrams showing front and back SAM control unit with labeled fuse positions and electrical connectors.
