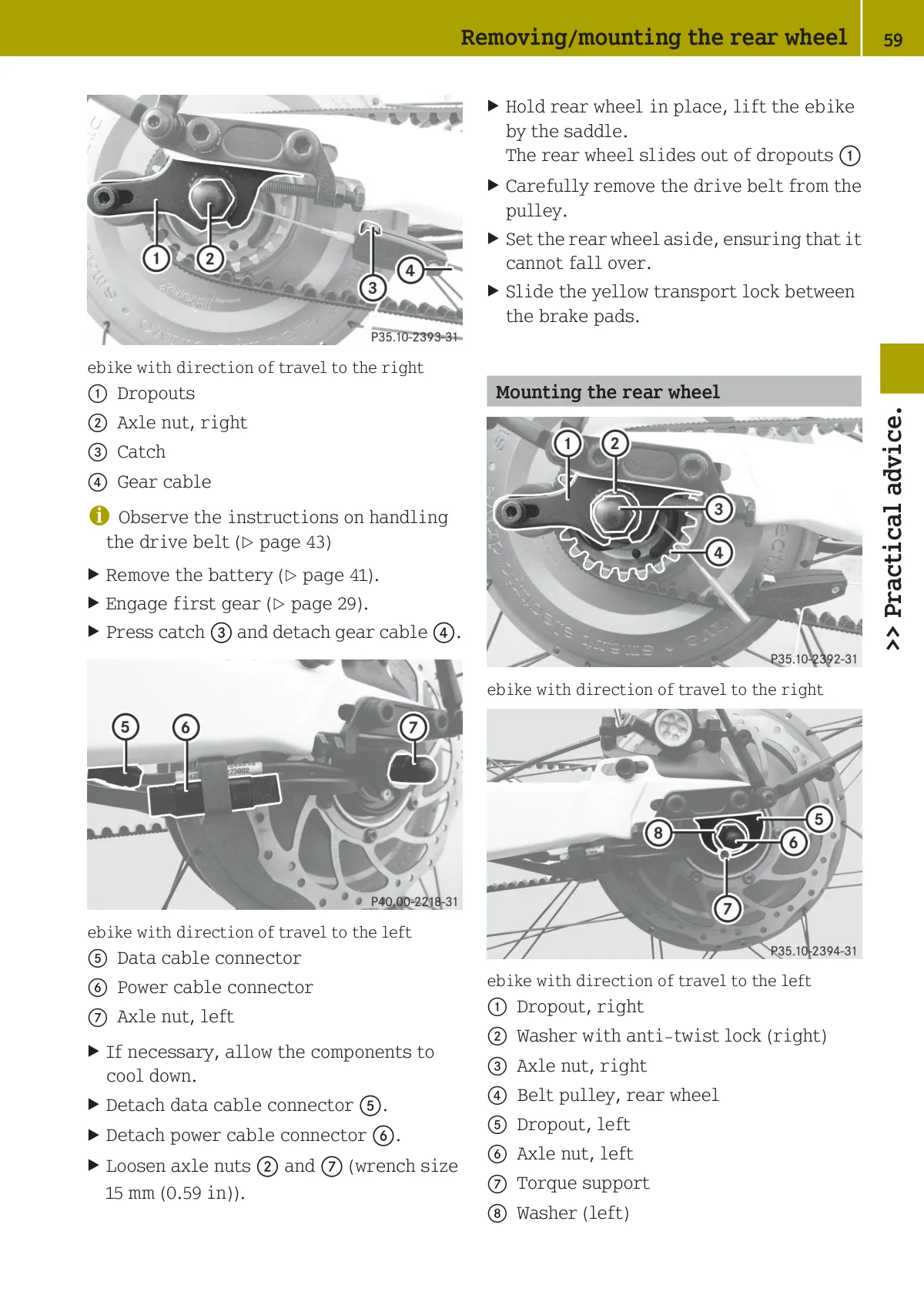

Rear wheel removal and mounting procedures for Smart ebike, showing dropouts, axle nuts, drive belt, and cable connectors.

Four technical diagrams with numbered callouts showing rear wheel removal and installation steps for an electric bike.
