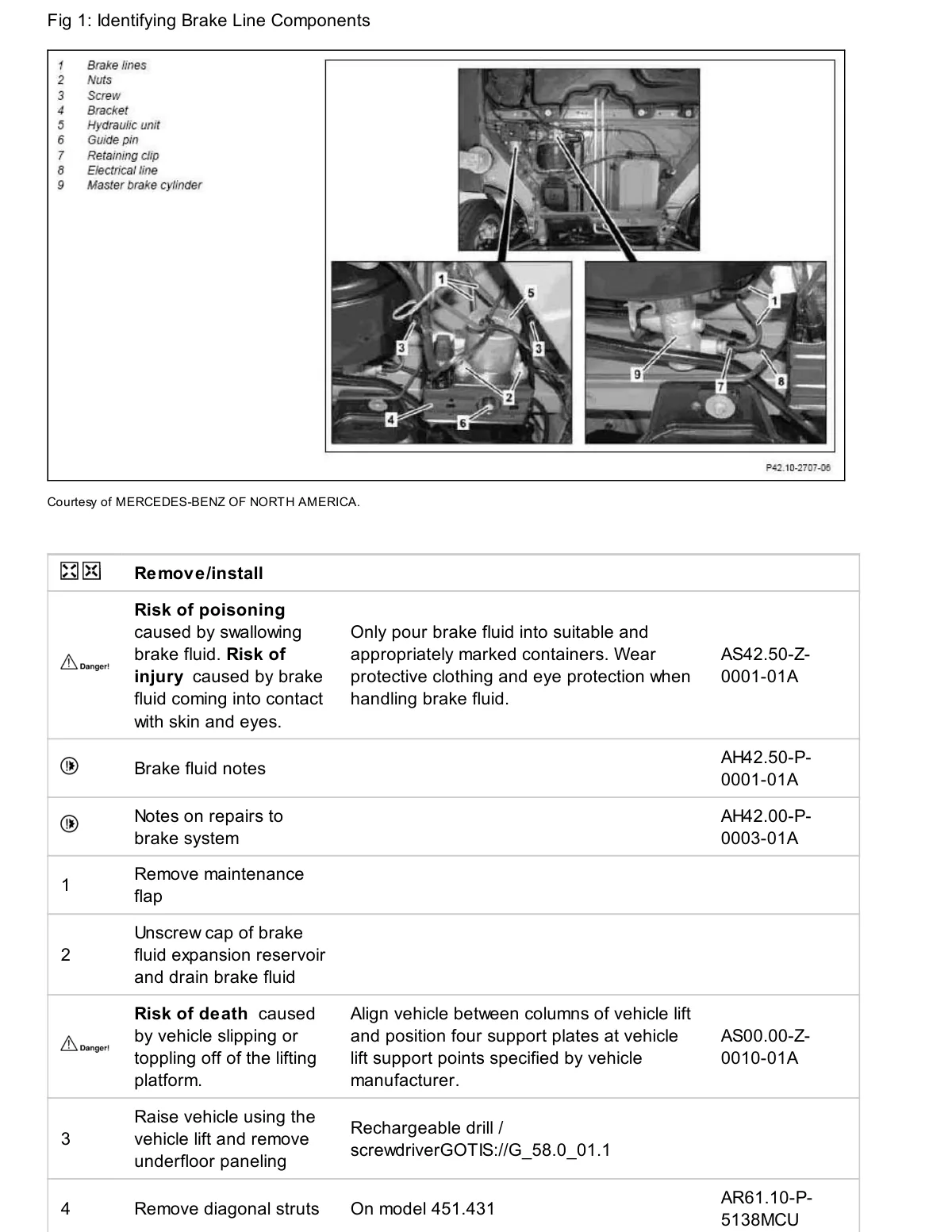

Brake line components identification with numbered callouts showing lines, nuts, screws, brackets, hydraulic unit, guide pins, retaining clips, electrical line, and master brake cylinder.

Three photographs showing brake system components with numbered labels 1-9 identifying hydraulic and mechanical parts.
