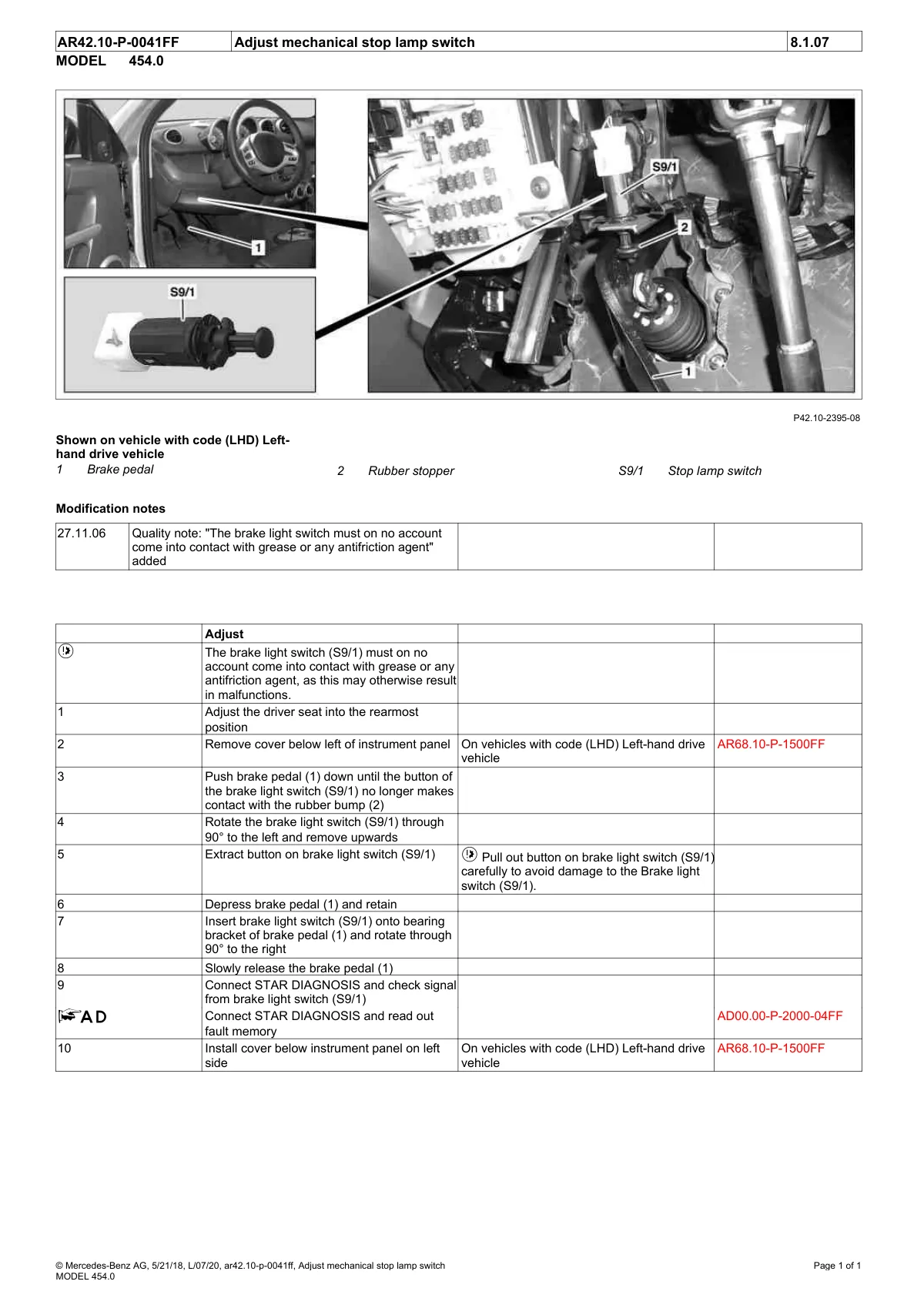

Adjust mechanical stop lamp switch on 454 Roadster, brake pedal and S9/1 stop lamp switch location and assembly procedure.

Service procedure showing brake pedal assembly and stop lamp switch adjustment steps for Smart 454 Roadster.
