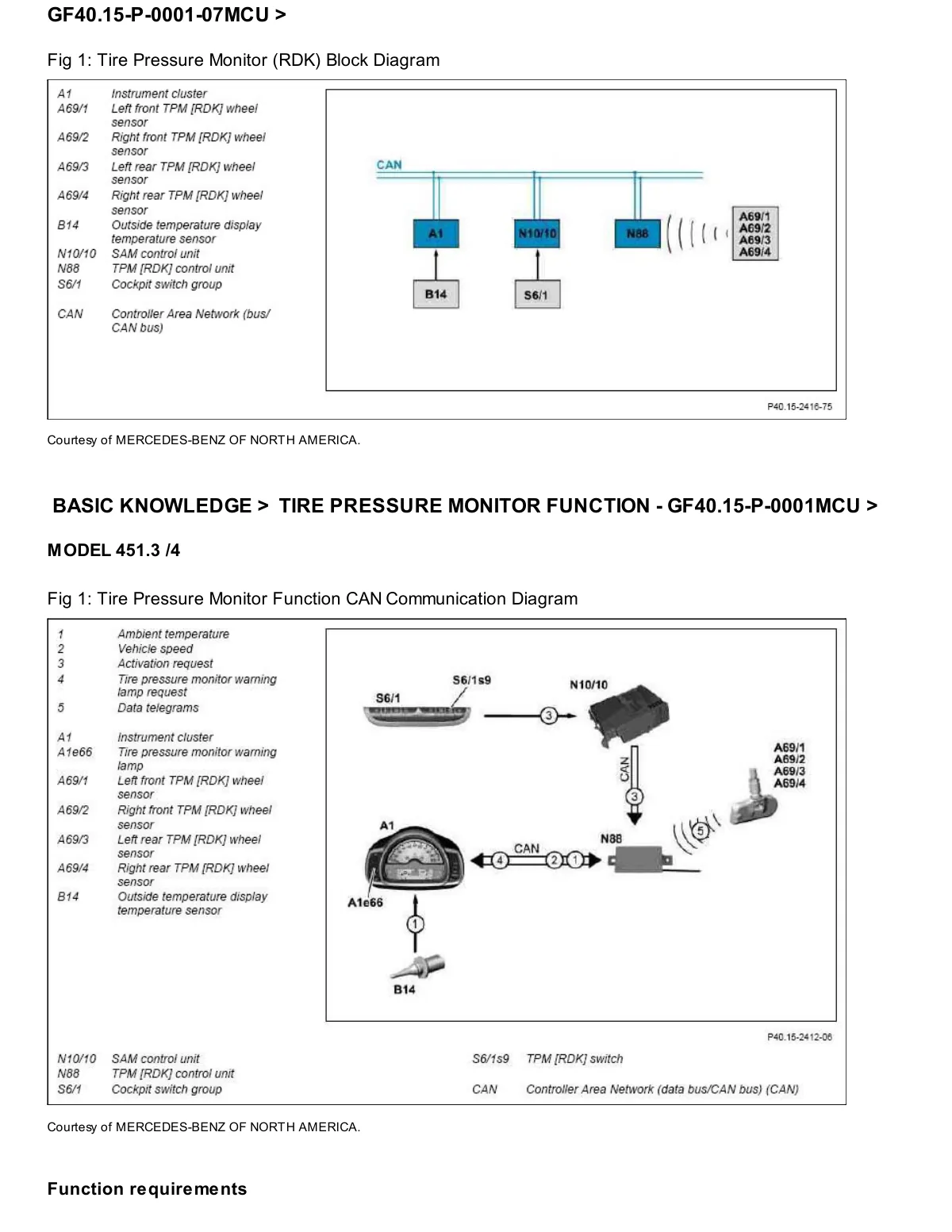

Tire Pressure Monitor (RDK) block diagram and CAN communication schematic for Smart 451 model showing sensor connections and control units.

Two technical diagrams showing tire pressure monitor system architecture and CAN bus communications between sensors and control modules.
