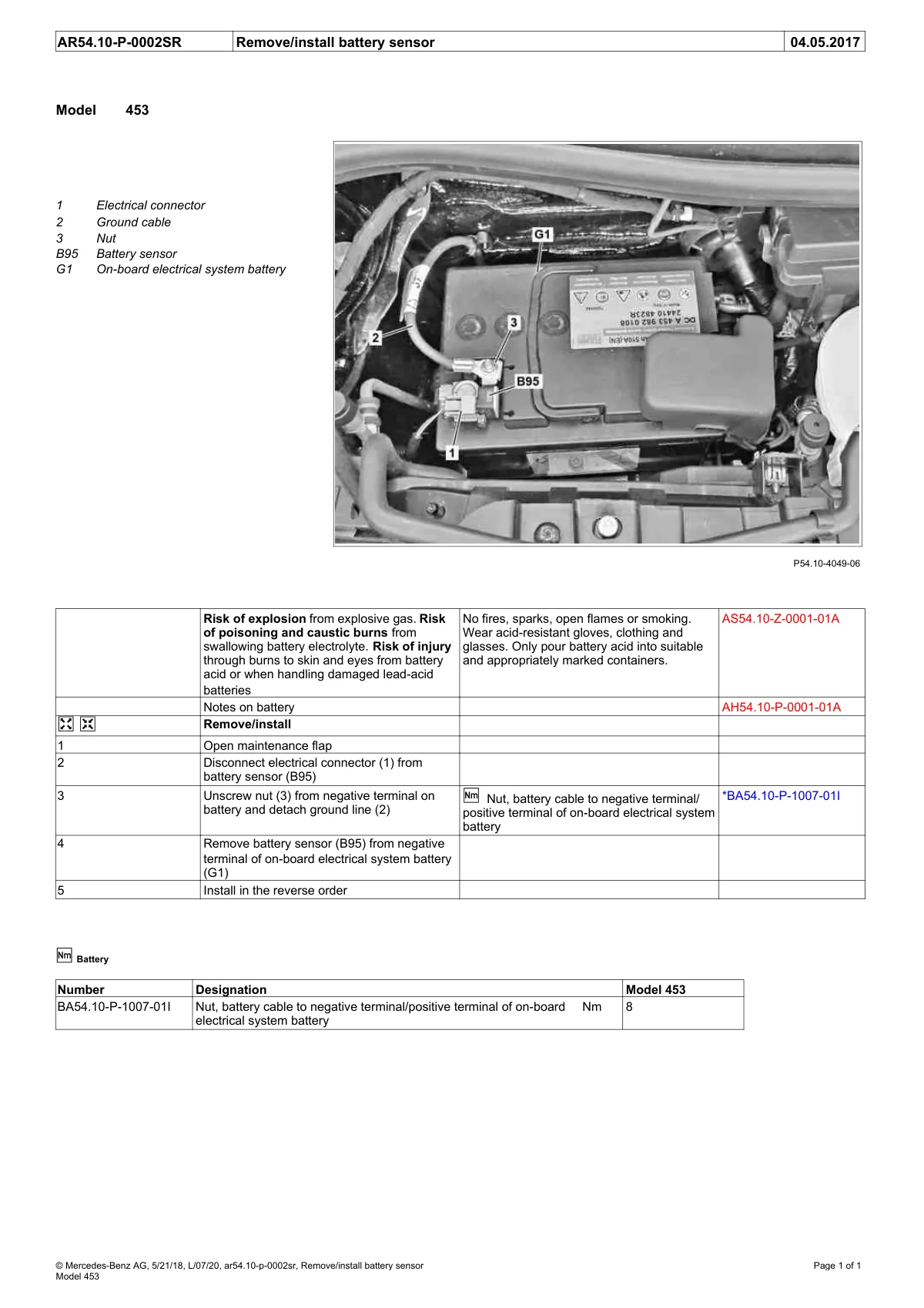

Battery sensor removal/installation procedure for 453 showing electrical connector, ground cable, and sensor location on vehicle.

Engine bay diagram with numbered callouts for battery sensor components on Smart 453.
