Pedal seal components identification and removal/installation procedure for Smart 450/451/452/454 models.

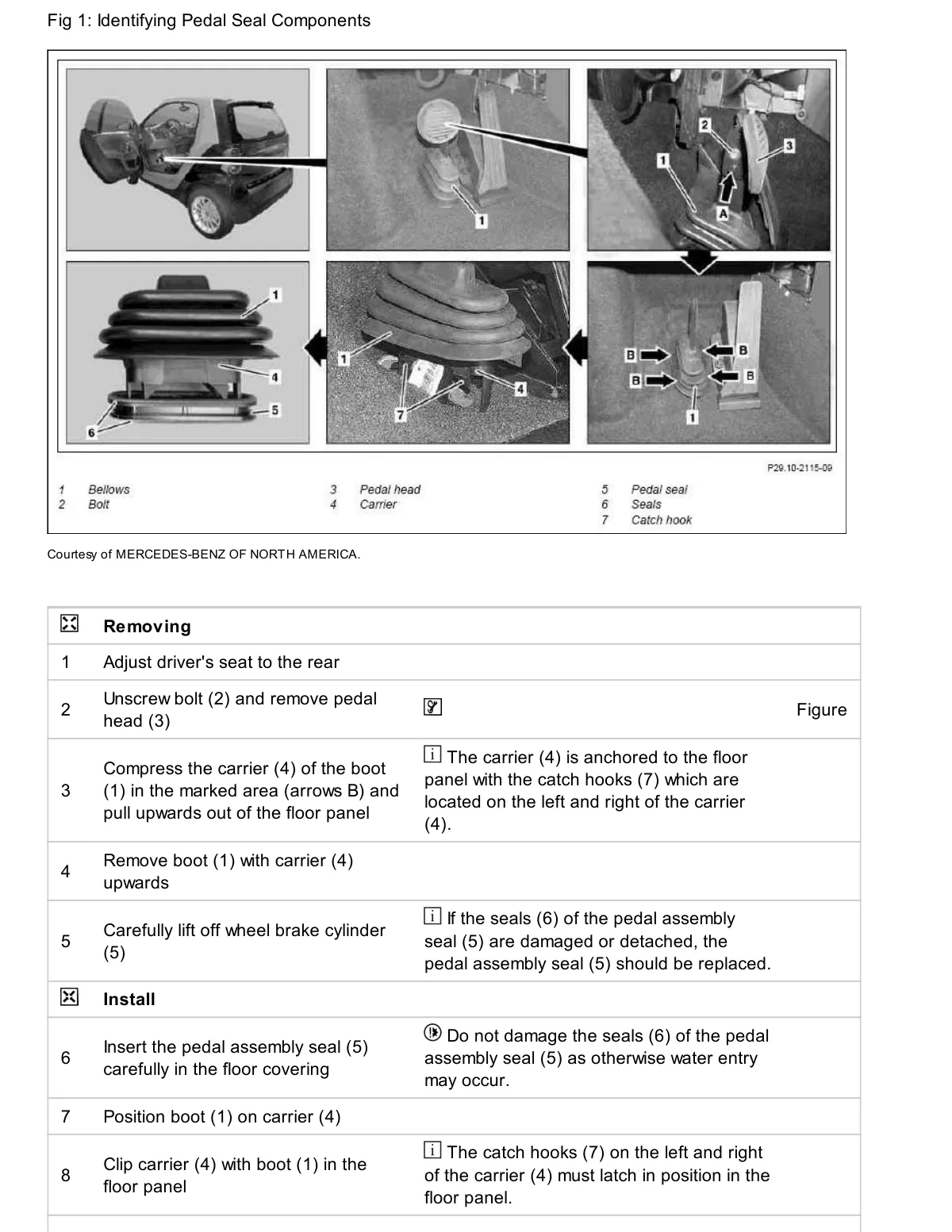

Exploded diagrams showing pedal seal bellows, bolt, pedal head, carrier, seal components and step-by-step removal/installation instructions.
