High-voltage battery charging cable connection and removal procedures for Smart Fortwo 453 EV vehicles.

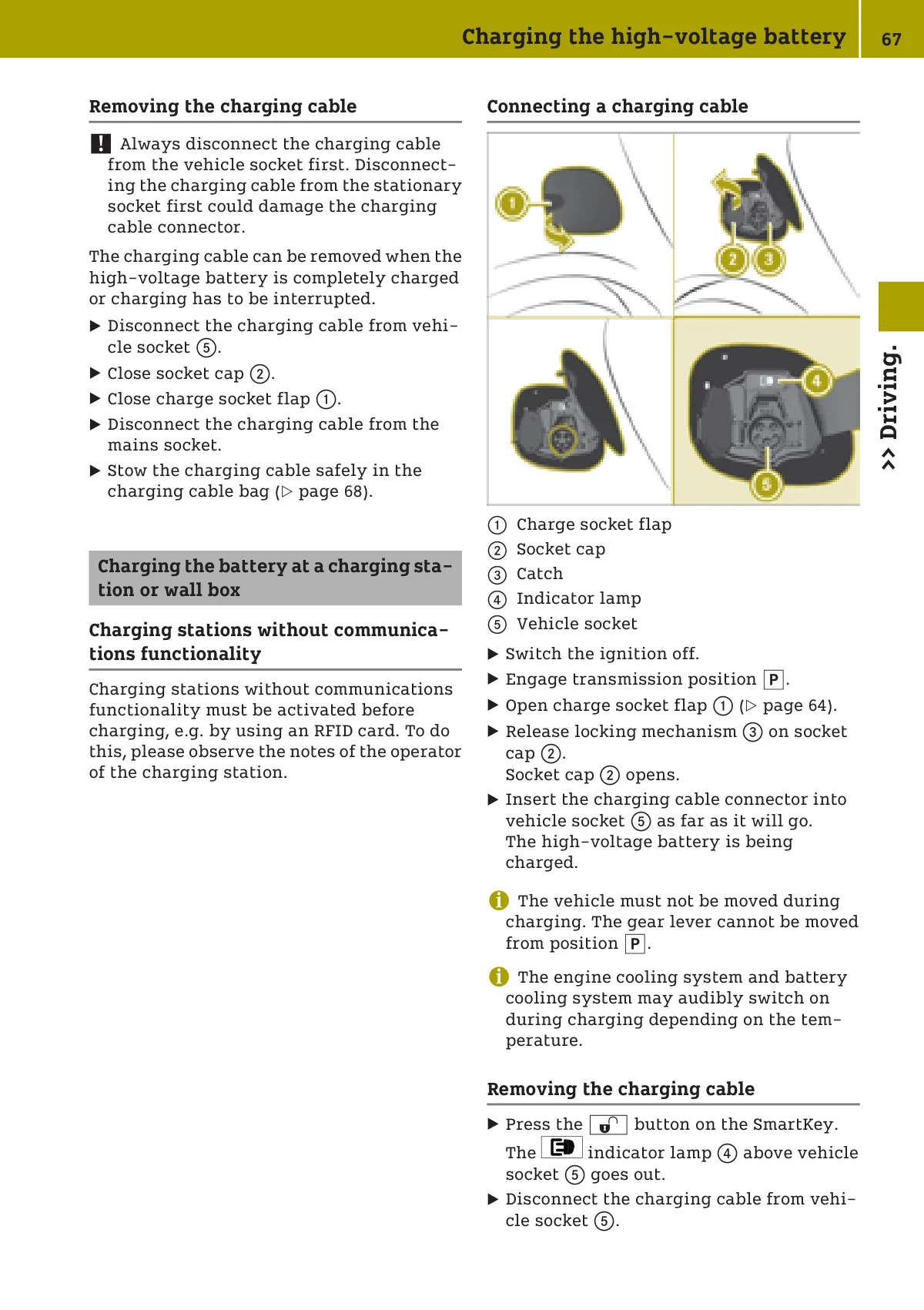

Charging cable connection steps with numbered callouts showing socket flap, cap, catch, indicator lamp, and vehicle socket.
