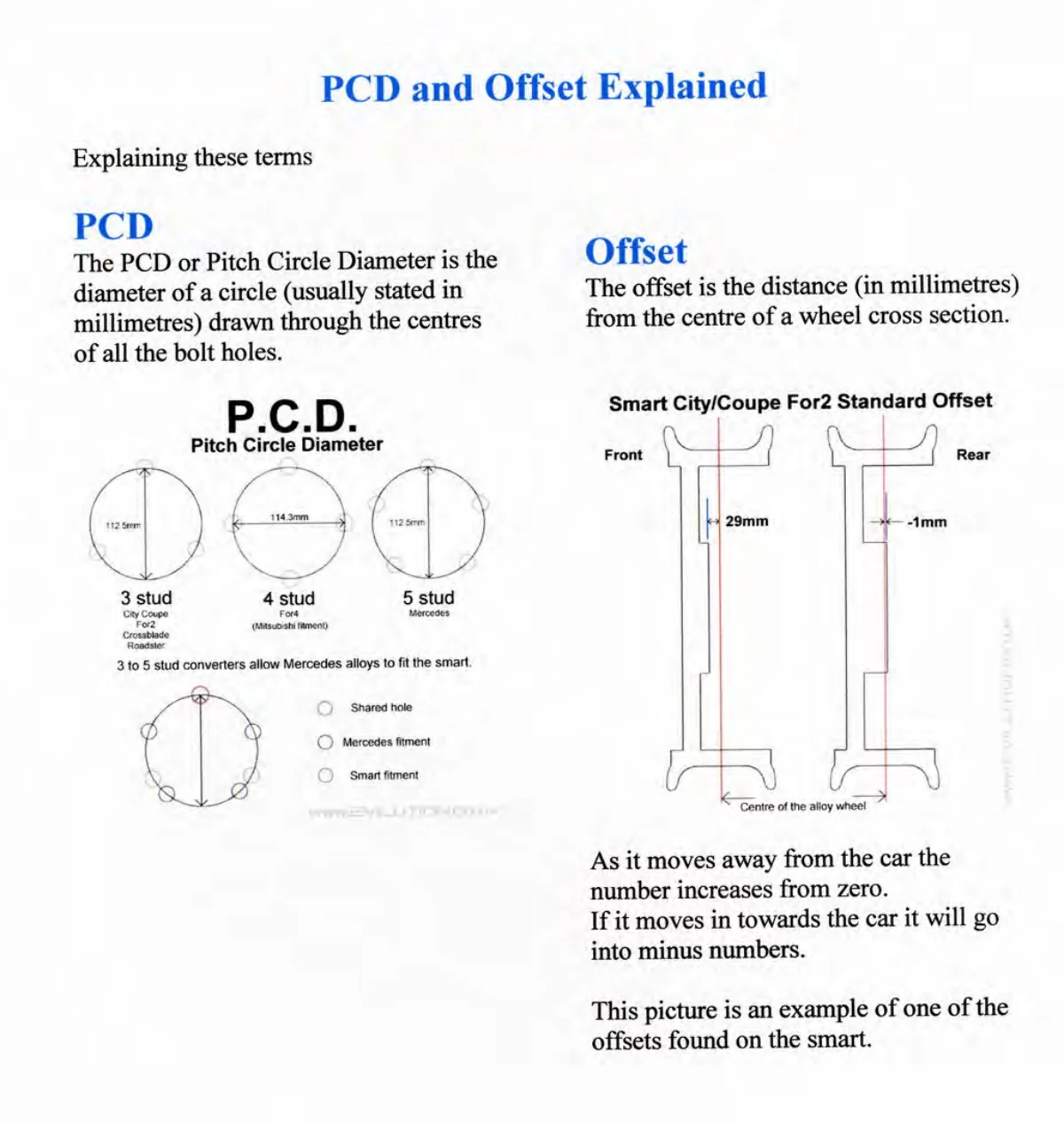

PCD and wheel offset specifications explained for Smart City/Coupe ForTwo with pitch circle diameter diagrams and standard offset measurements.

Educational diagrams showing PCD bolt hole circles for 3, 4, and 5 stud wheels, and front/rear wheel offset cross-sections showing 29mm and -1mm measurements.

View full-size image ↗

See all Chassis figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
