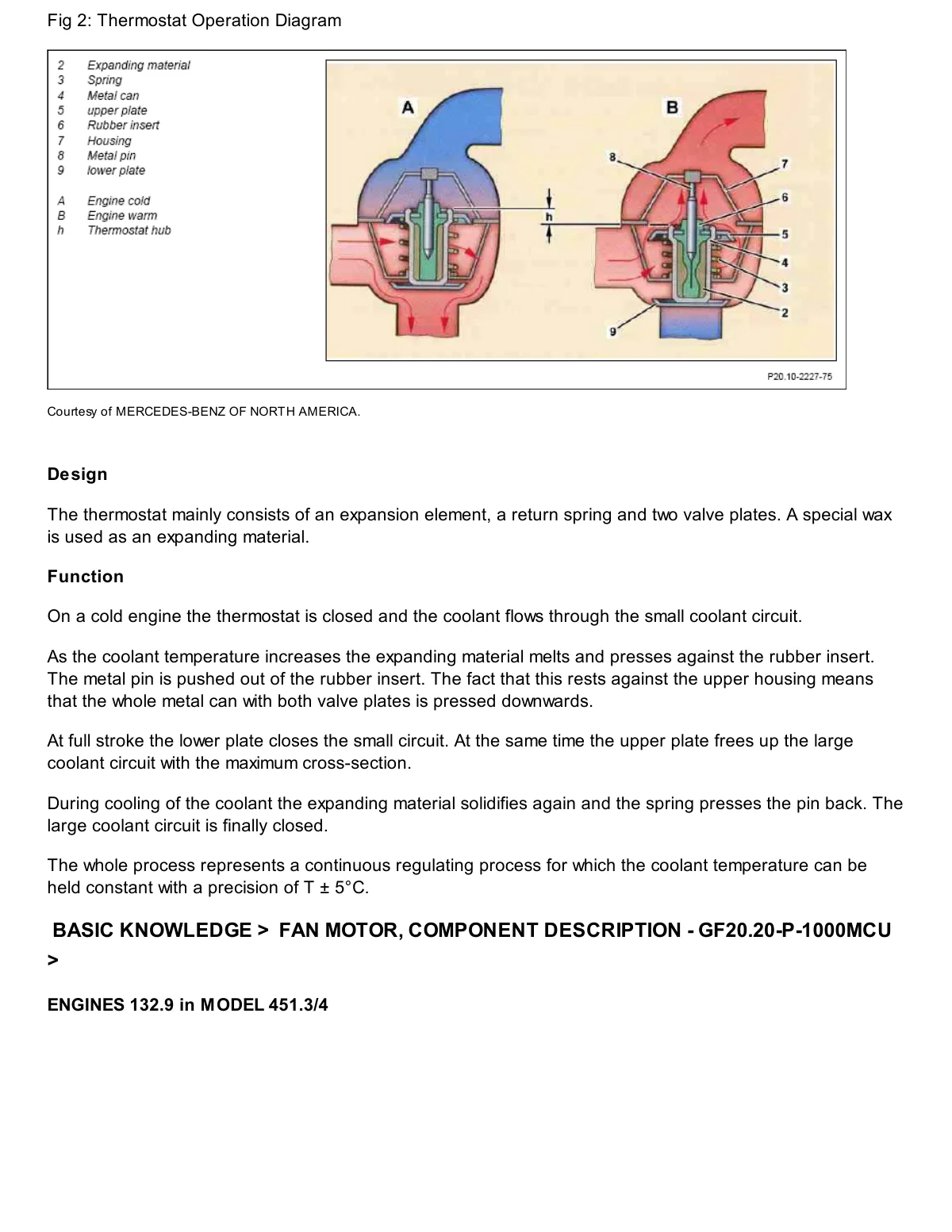

Thermostat operation diagram showing cold engine state (A) and warm engine state (B) with expanding material and valve plate positions.

Cross-section diagram of thermostat in closed and open positions, labeled with component numbers 2-9.
