Engine compartment components and air conditioning system locations for Smart Fortwo 453 with 639.9 engine.

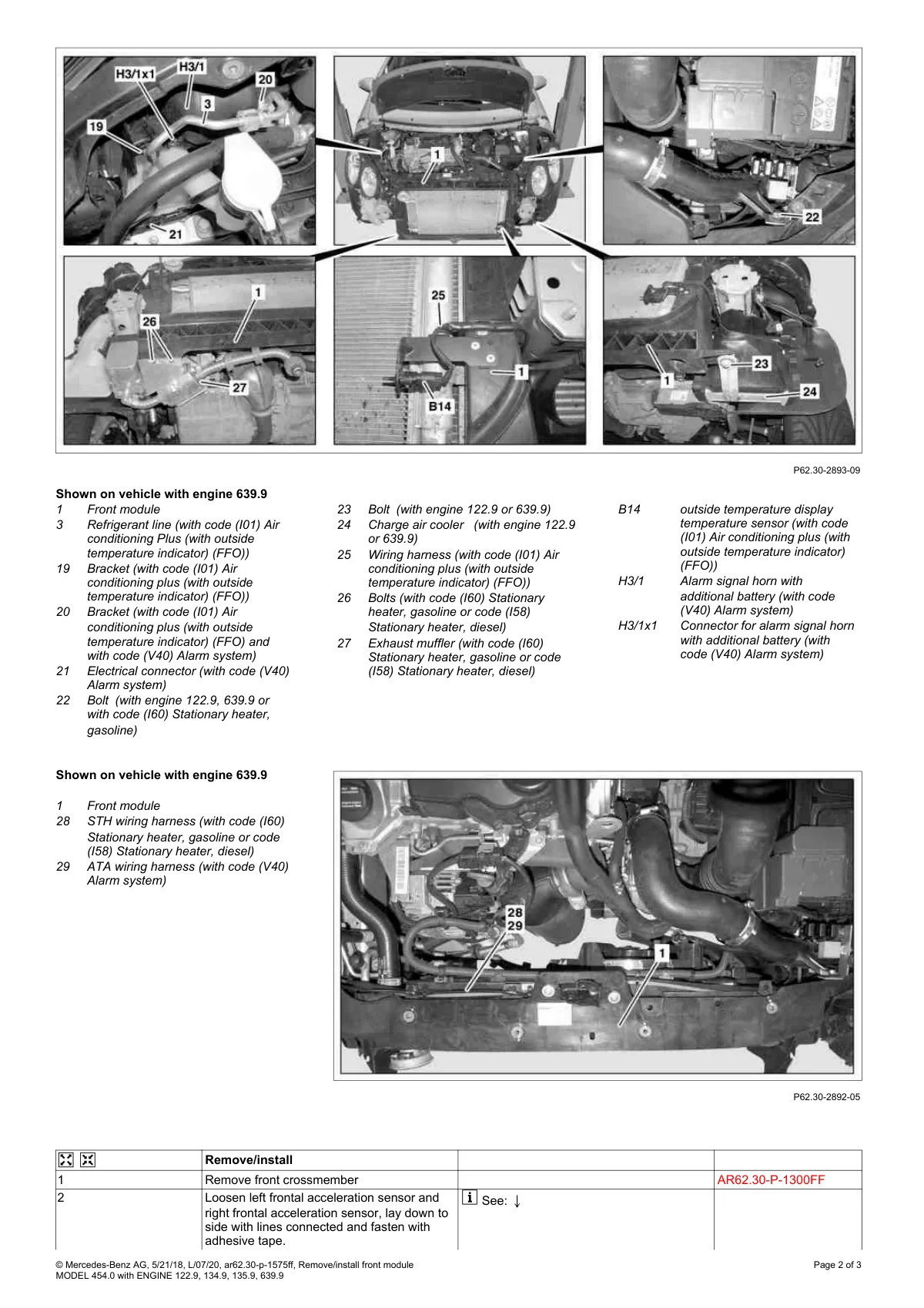

Six labeled photos of engine bay parts and wiring harnesses with numbered callouts and legend.
