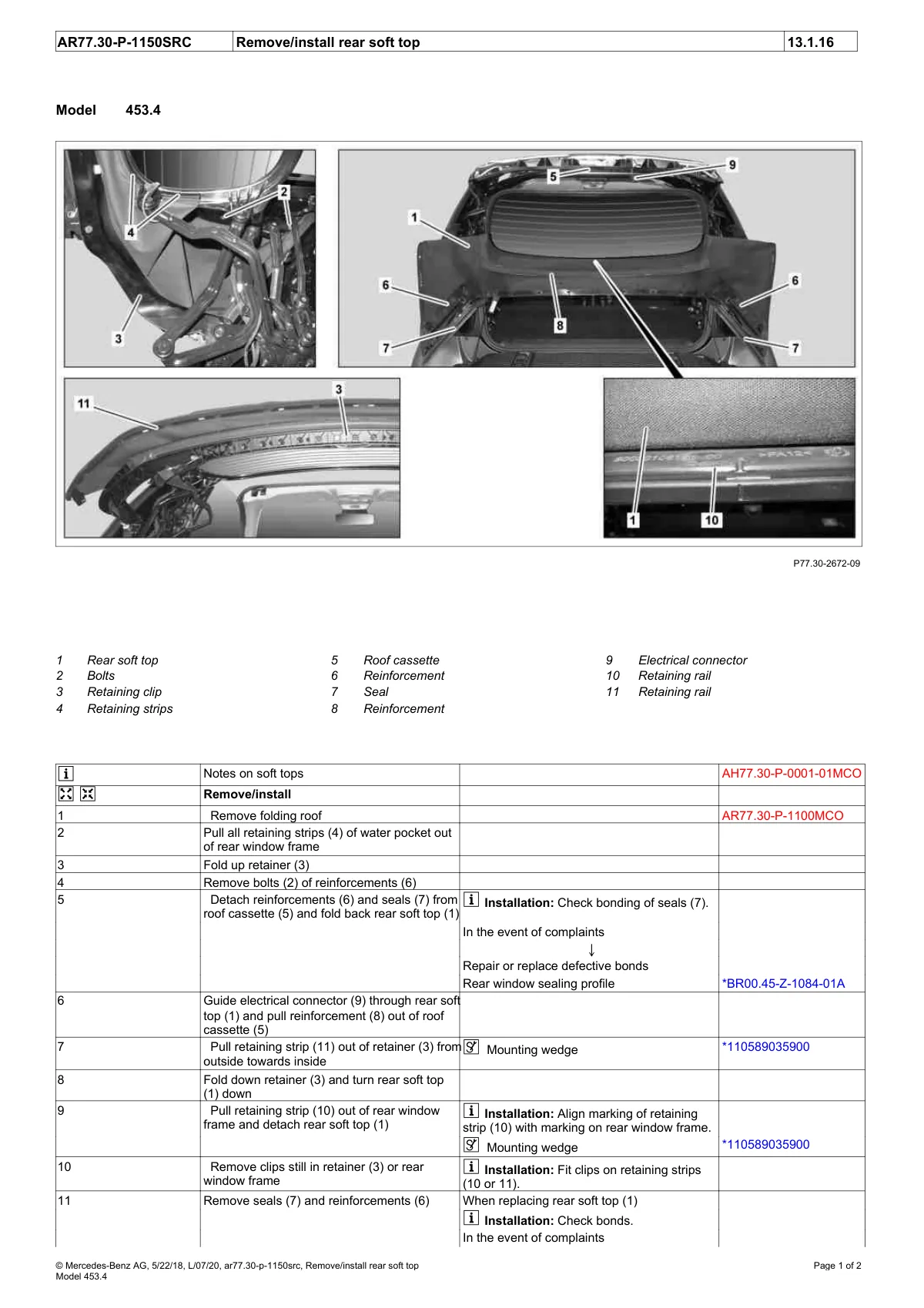

Chassis 453.4 rear soft top removal/installation procedure with numbered callouts showing roof cassette, reinforcements, seals, and retaining components.

Smart Roadster 453.4 convertible top assembly diagram with 11 labeled parts and step-by-step service instructions.
