EV charging port access procedure and safety warnings for damaged charging equipment and cable heating limits.

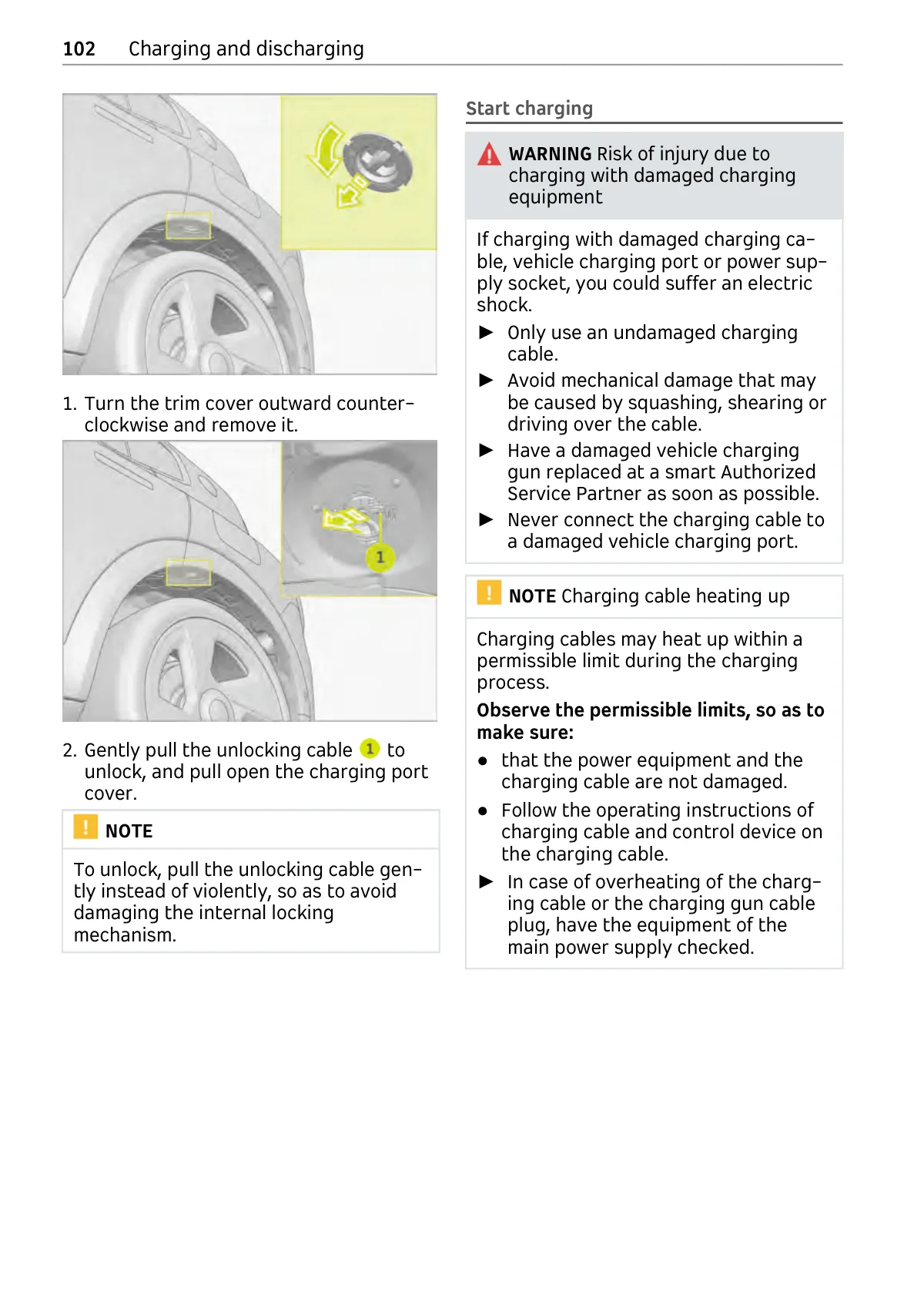

Steps to open charging port cover on electric vehicle; warnings about electrical shock and cable overheating.
