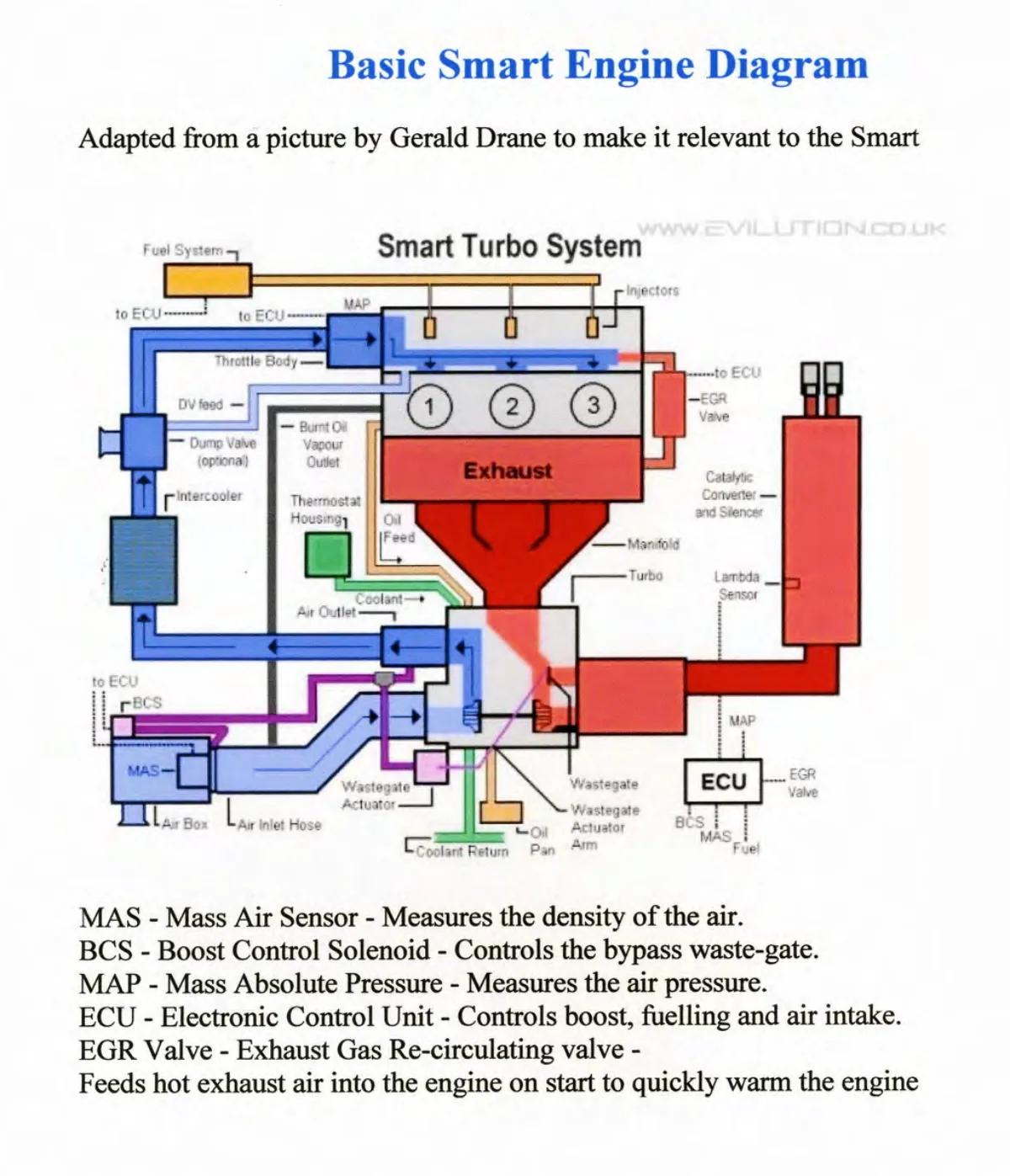

Smart Turbo System engine diagram showing fuel, air intake, exhaust, and sensor pathways with labeled components.

Schematic diagram of Smart turbocharged engine system with color-coded fluid and air flow paths and component labels.
