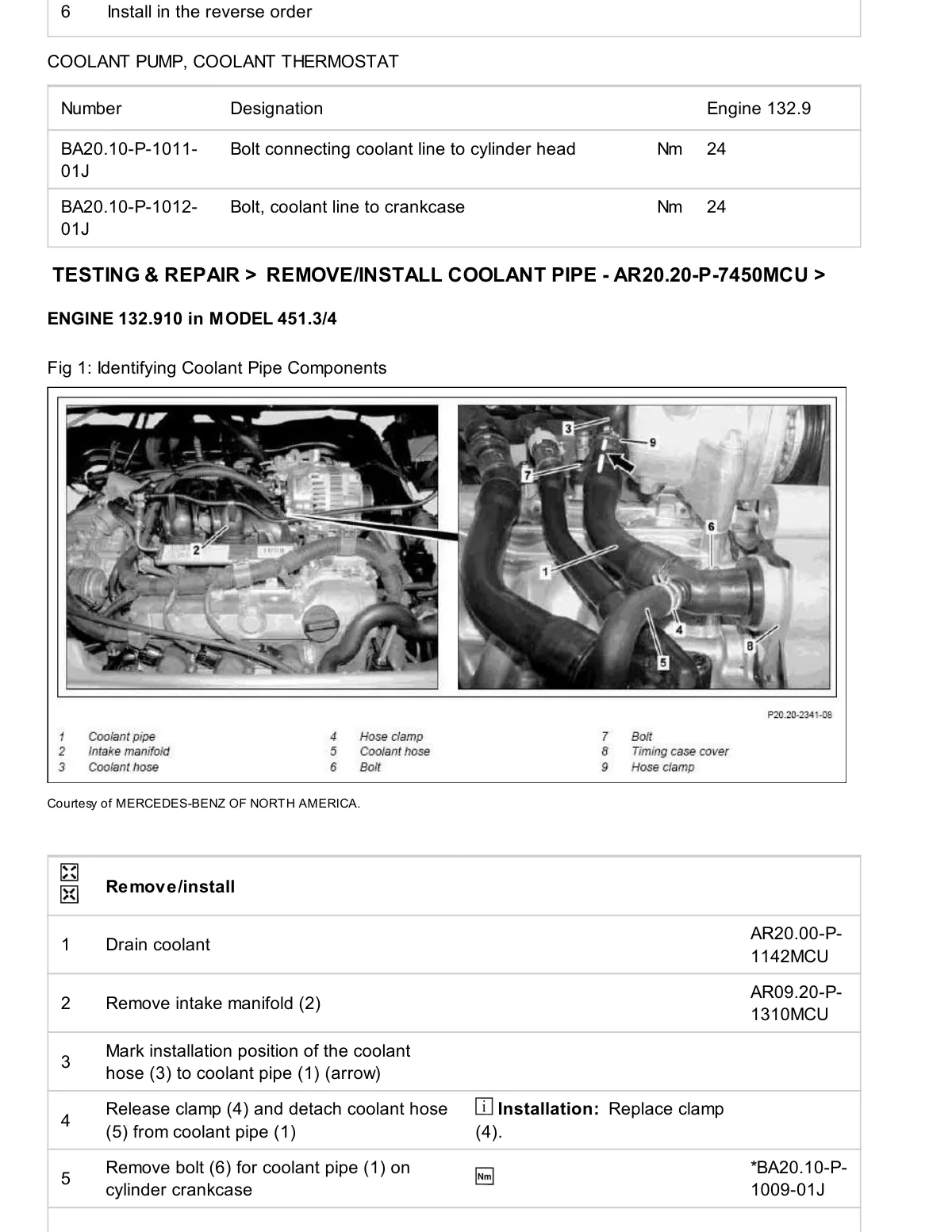

Coolant pump and thermostat service procedure for Engine 132.9 in smart model 451.3/4, identifying pipe components and removal/installation steps.

Engine coolant pipe components diagram with numbered callouts showing hoses, clamps, bolts, and intake manifold locations.
