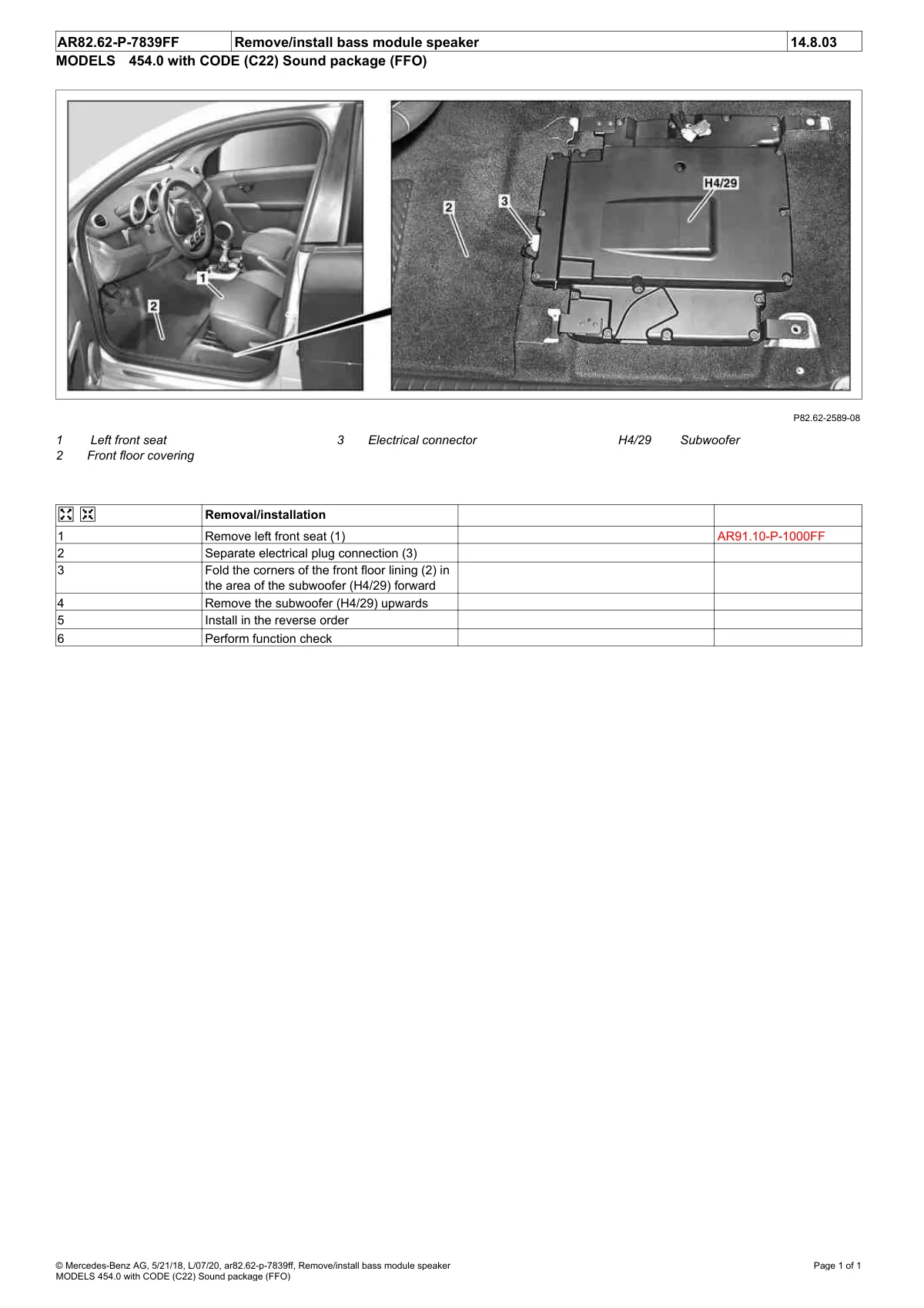

Remove/install bass module speaker (subwoofer H4/29) in chassis 454 with C22 sound package, showing left front seat area and subwoofer location.

Service procedure for removing and installing subwoofer in Smart Fortwo 454 with numbered callouts showing removal steps and parts location.
