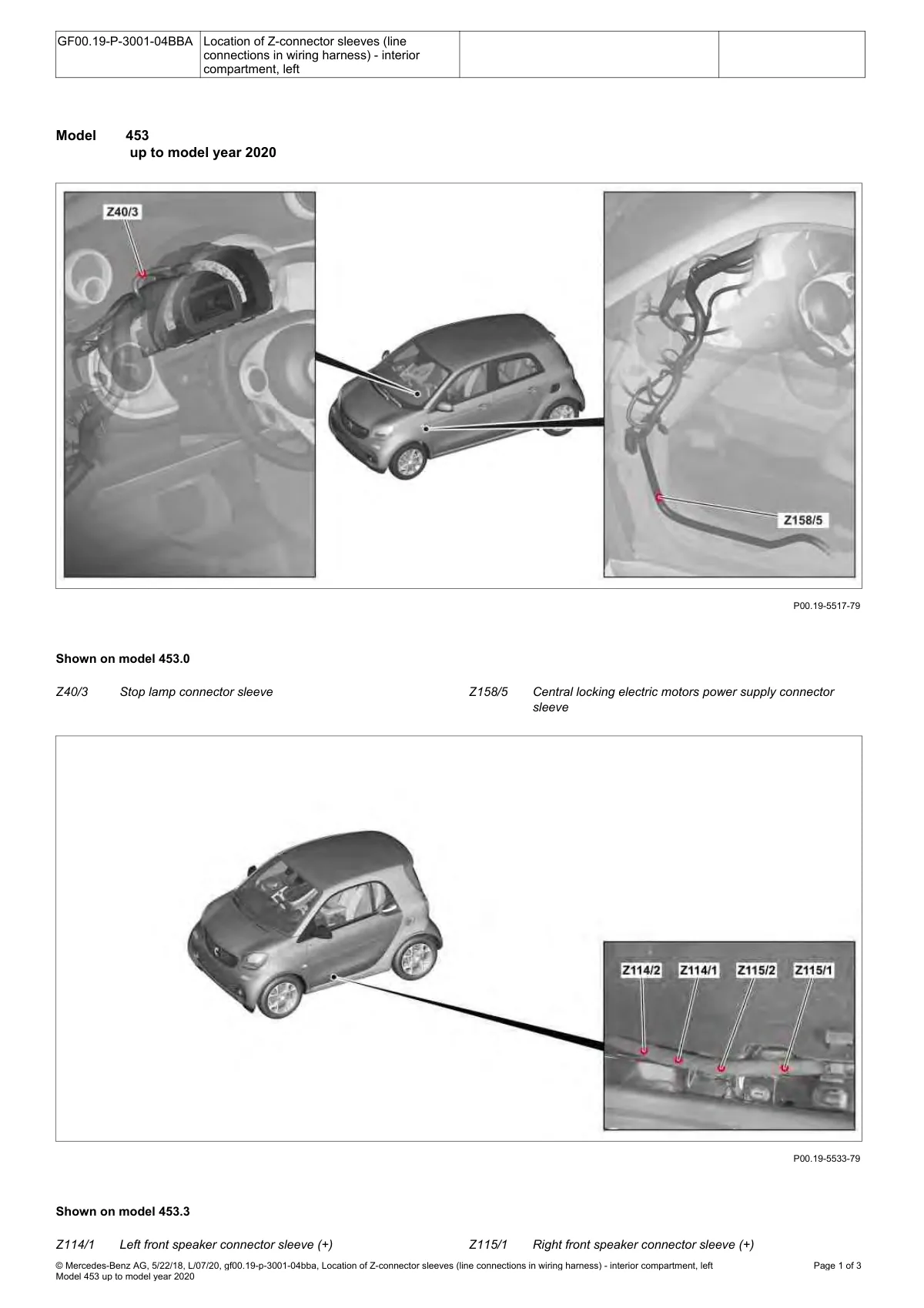

Z-connector sleeve locations in interior wiring harness for Smart ForTwo 453 up to model year 2020, left compartment.

Wiring diagram showing Z40/3, Z158/5, Z114/1, Z114/1, Z115/2, and Z115/1 connector sleeves on 453 chassis.
