Rear and front lamp units with component locations and callout labels for 453 chassis lighting configuration.

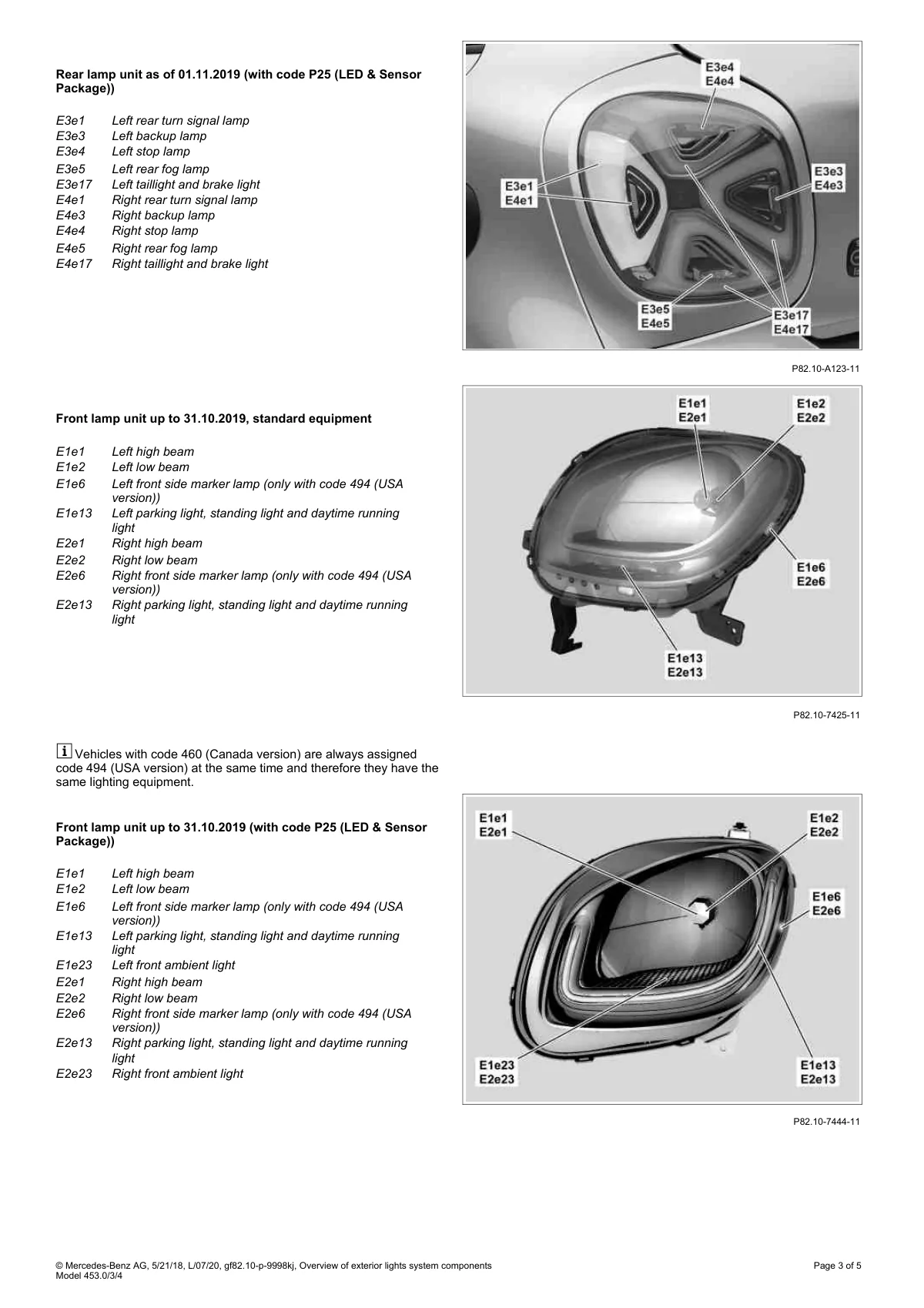

Diagram showing rear lamp assembly with turn signals, backup, stop and fog lamps labeled E3e1-E4e17, and front lamp units with high beam, low beam, side markers and parking lights labeled E1e1-E2e23.
